Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the shift lever knob. (MTX)
4. Remove the selected lever knob. (ATX)
5. Remove the front console.




6. Remove in the order indicated in the above table.
7. Install in the reverse order of removal.

Socket Removal Note

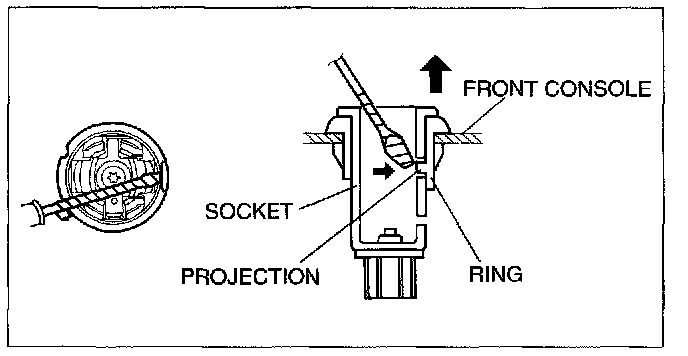

1. Insert a tape-wrapped flathead screwdriver into the socket hole and push on the ring projection to lift the socket outward.

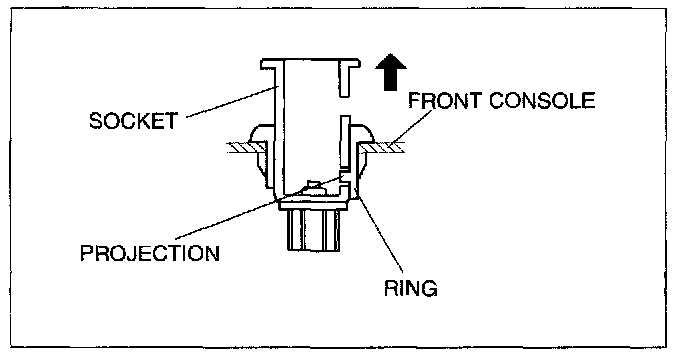

2. Lift out the socket until the ring projection locks into the lower socket hole as shown in the figure.

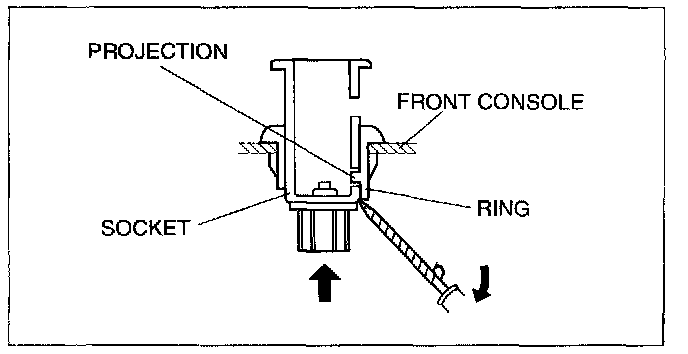

3. From the rear of the front console, insert a tape-wrapped flathead screwdriver between the socket and the ring as shown in the above figure.
4. While lifting the ring projection with the flathead screwdriver, push out and remove the socket.

Ring Removal Note

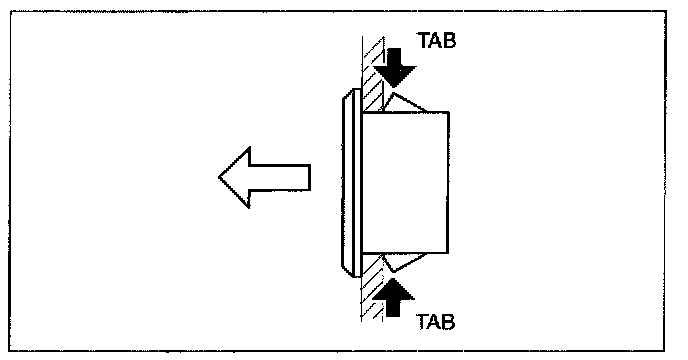

1. Pull the ring outward while pressing the tabs.
