Child Seat Tether Attachment: Service and Repair

ADJUSTER ANCHOR REMOVAL/INSTALLATION

WARNING: The side air bag sensor is attached to the lower part of the B-pillar.When working around the B-pillar, disconnect the negative battery cable avoiding excessive impact to the lower part of the B-pillar.

1. Remove the following parts:
1. Front scuff plate inner
2. Rear scuff plate
3. B-pillar lower trim
4. Front seat belt upper anchor installation bolt
5. B-pillar upper trim

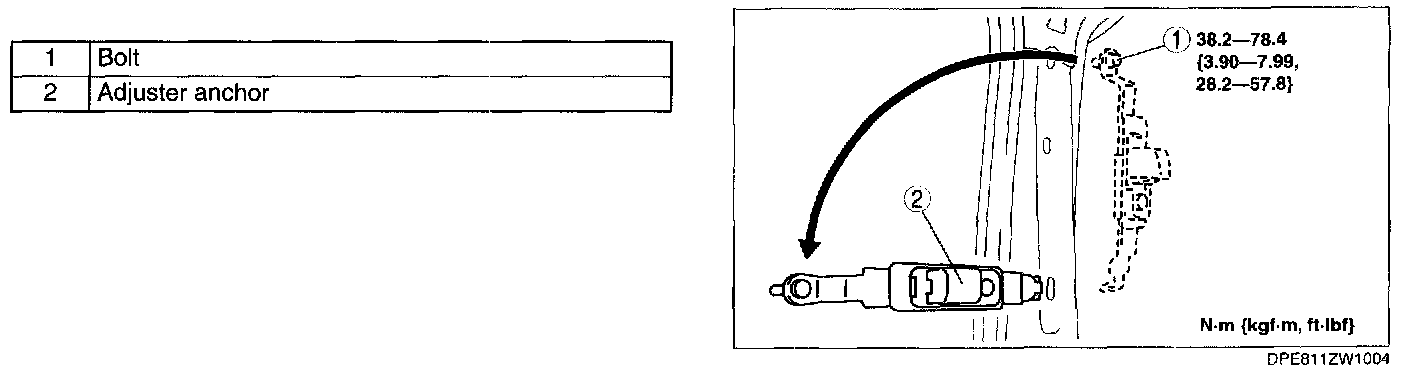

2. Remove in the order indicated in the above table.
3. Install in the reverse order of removal.
