Power Steering Pump: Service and Repair

ELECTRIC POWER STEERING OIL PUMP REMOVAL/INSTALLATION

1. Remove the under cover, splash shield and mudguard.
2. Remove the front bumper.
3. Remove the washer tank.

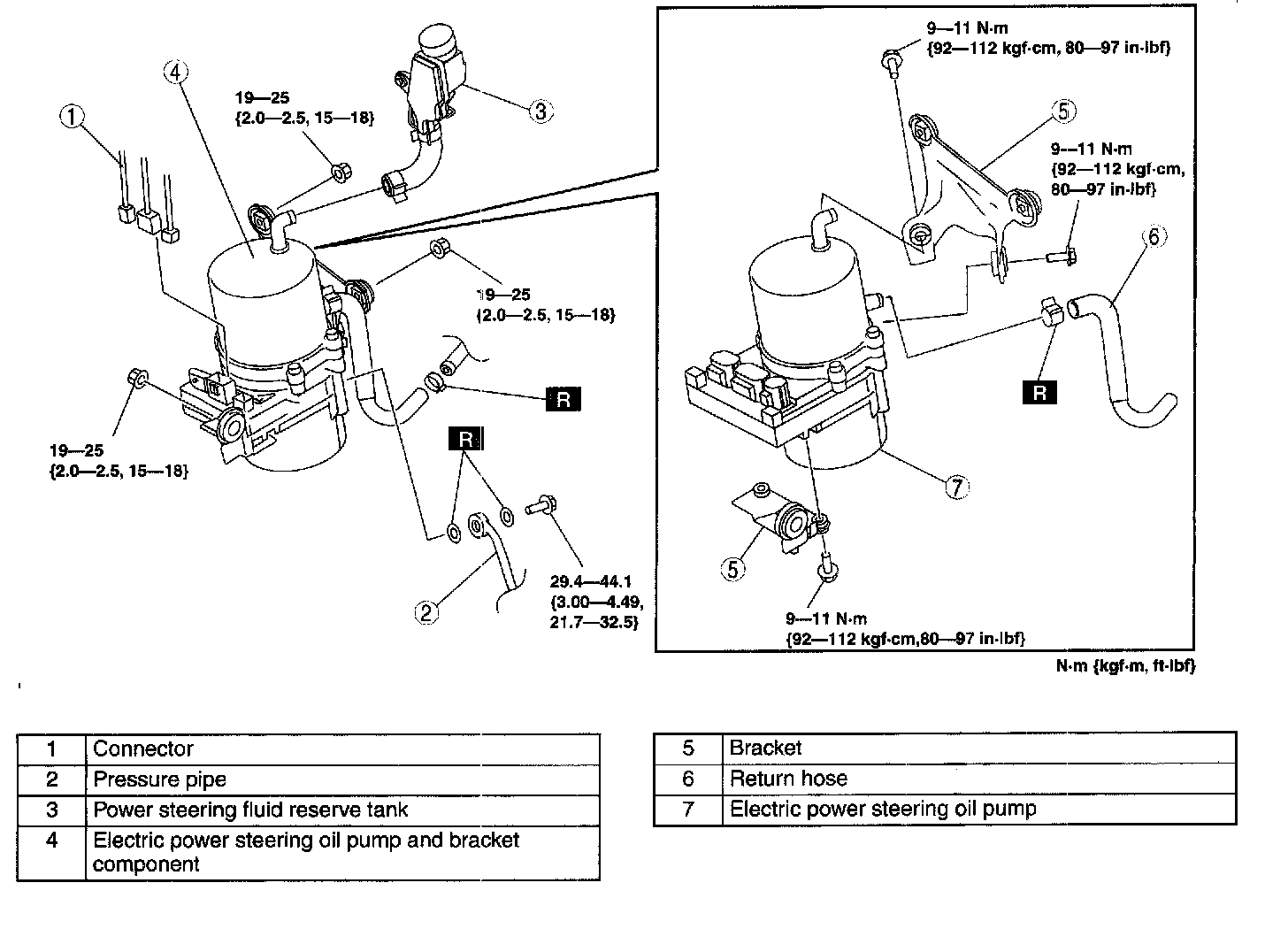

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
