Washer Fluid Level Indicator: Service and Repair

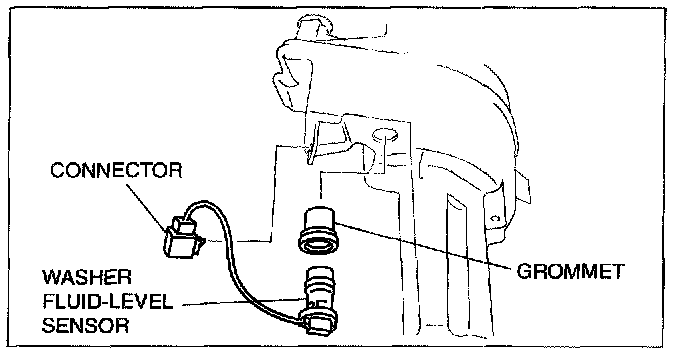

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION




1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the washer tank.
4. Disconnect the connector.
5. Remove the washer fluid-level sensor.
6. Remove the grommet.
7. Install in the reverse order of removal.
