Removal/Installation

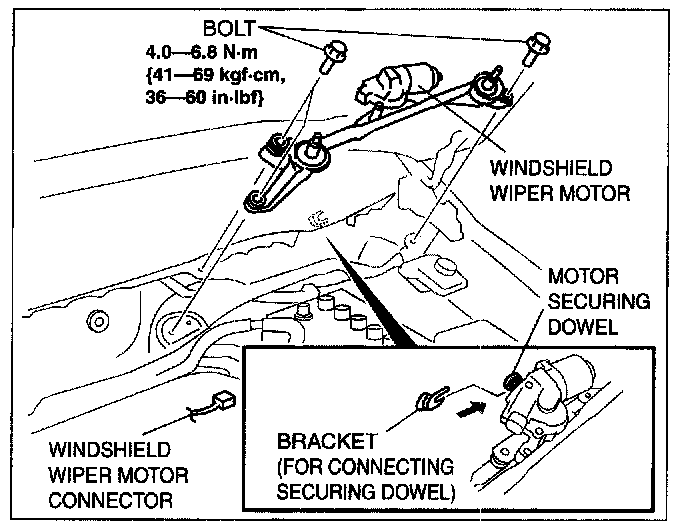

WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION




1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the windshield wiper arm and blade.
4. Remove the cowl grille.
5. Remove the cowl panel.
6. Remove the bolts.
7. Move the windshield wiper motor in the direction of the arrow, remove the securing dowel from the bracket, then remove the windshield wiper motor.
8. Disconnect the windshield wiper motor connector.
9. Install in the reverse order of removal.
