Front Fender Liner: Service and Repair

SPLASH SHIELD REMOVAL/INSTALLATION

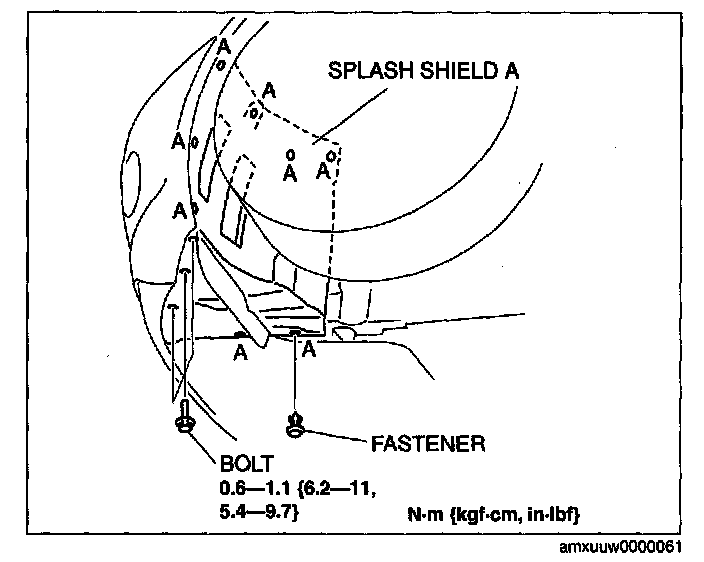

Splash Shield A






1. Remove the bolts.
2. Remove the fasteners at section A shown in the figure.
3. Install in the reverse order of removal.

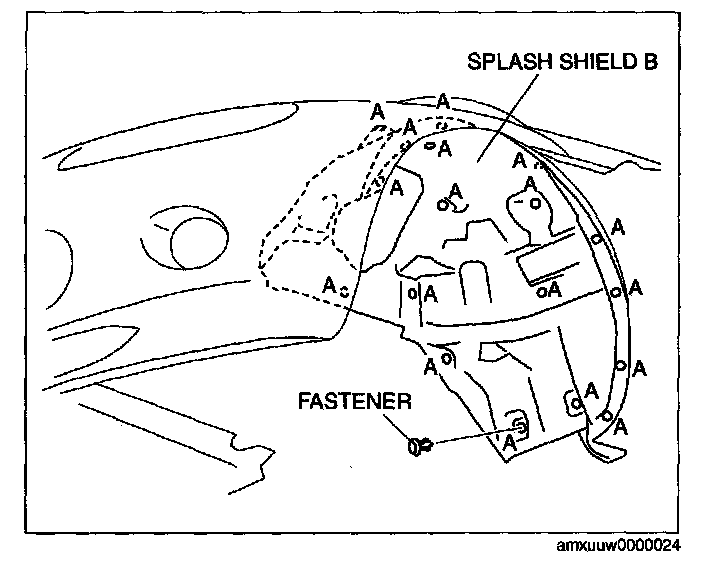

Splash Shield B
1. Remove the front suspension tower bar.
2. Remove the splash shield A.
3. Remove the front shock absorber and coil spring.






4. Remove the fasteners at section A shown in the figure.
5. Remove the splash shield B.
6. Install in the reverse order of removal.
