Brakes and Traction Control

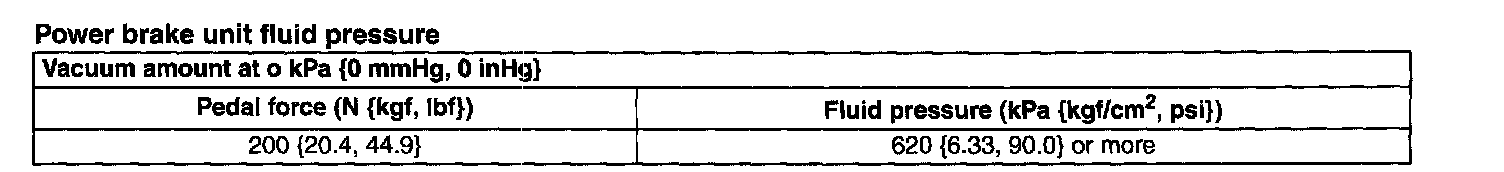

Power brake unit fluid pressure:

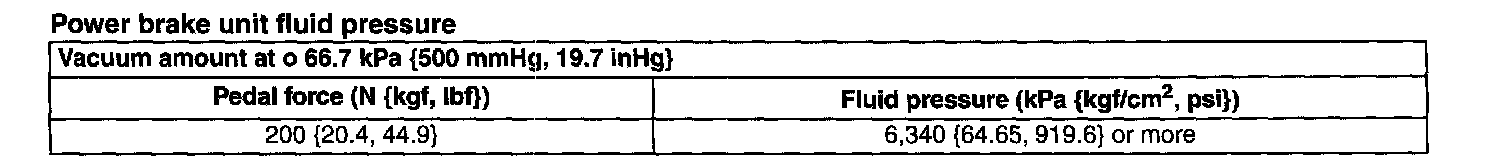

Power brake unit fluid pressure:

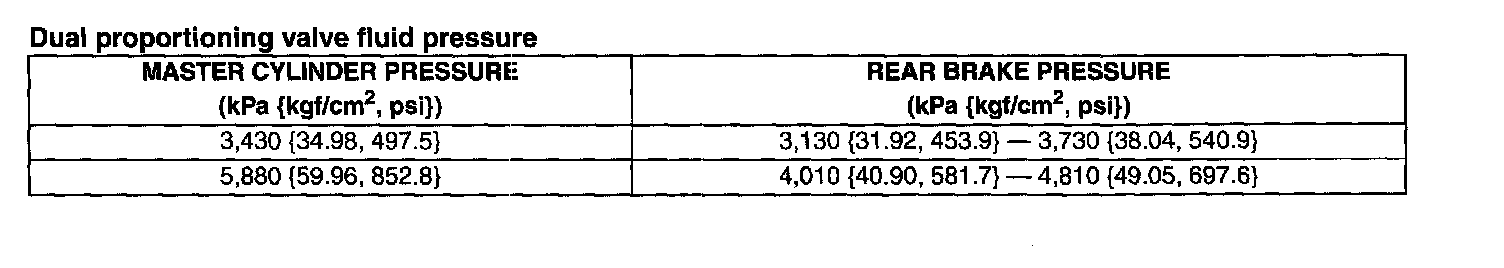

Dual proportioning valve fluid pressure:
