Overhaul

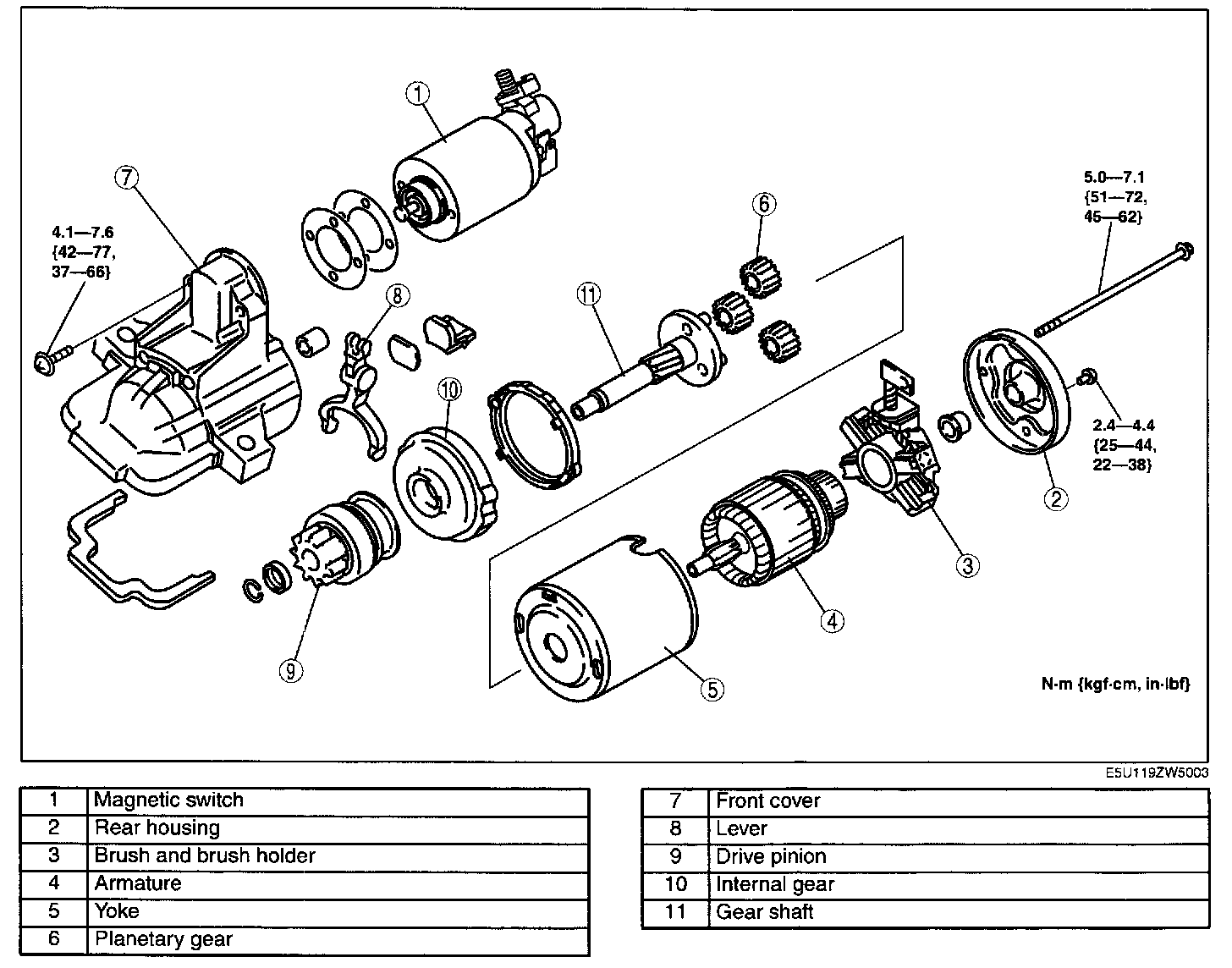

STARTER DISASSEMBLY/ASSEMBLY [LF]
1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
