Overhaul

BLOWER UNIT DISASSEMBLY/ASSEMBLY [L3 WITH TC]

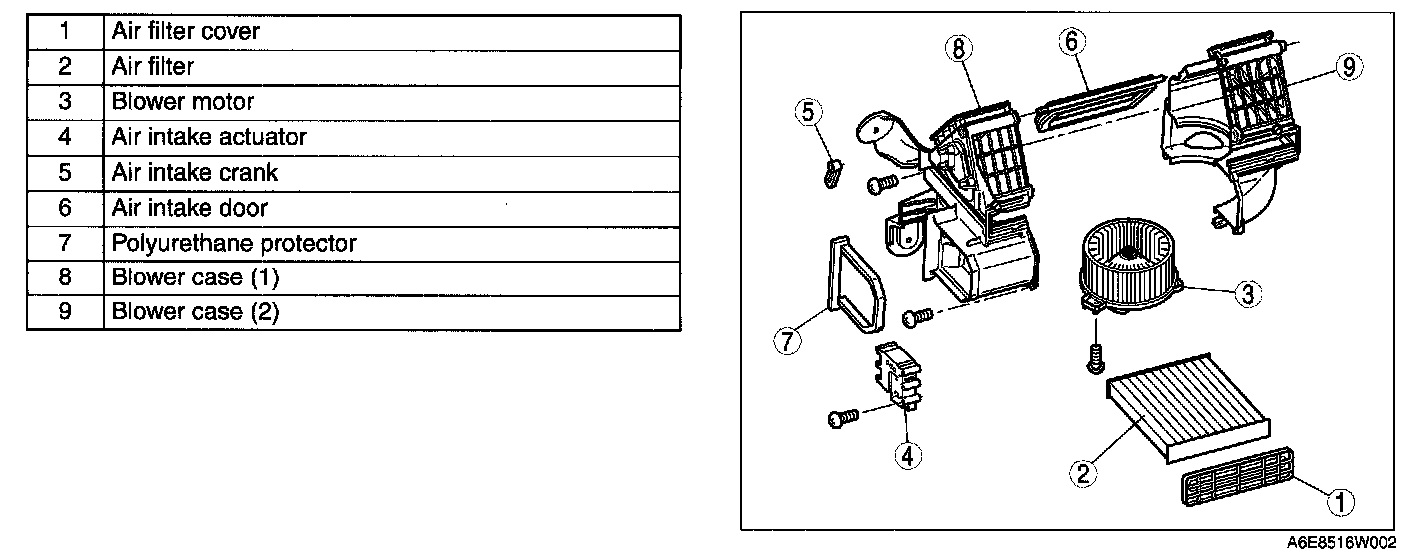

1. Disassemble in the order indicated in the table.

CAUTION: Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

2. Assemble in the reverse order of disassembly.
