Malfunction Lamp / Indicator: Service and Repair

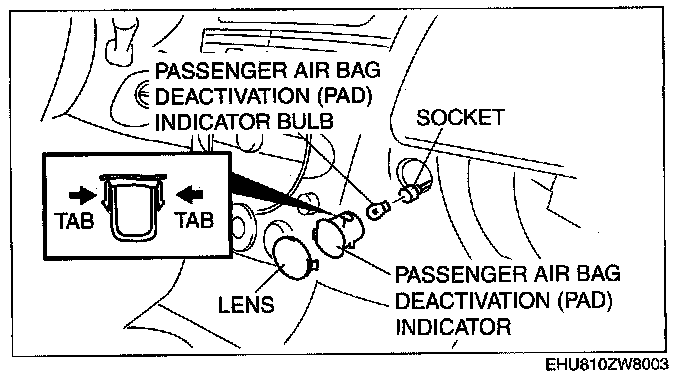

PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the glove compartment.
3. Squeeze the tabs of passenger air bag deactivation (PAD) indicator and pull it outward to remove it.
4. Remove the socket.
5. Remove the passenger air bag deactivation (PAD) indicator bulb.




6. Remove the lens.
7. Install in the reverse order of removal.
