Shift Linkage: Locations

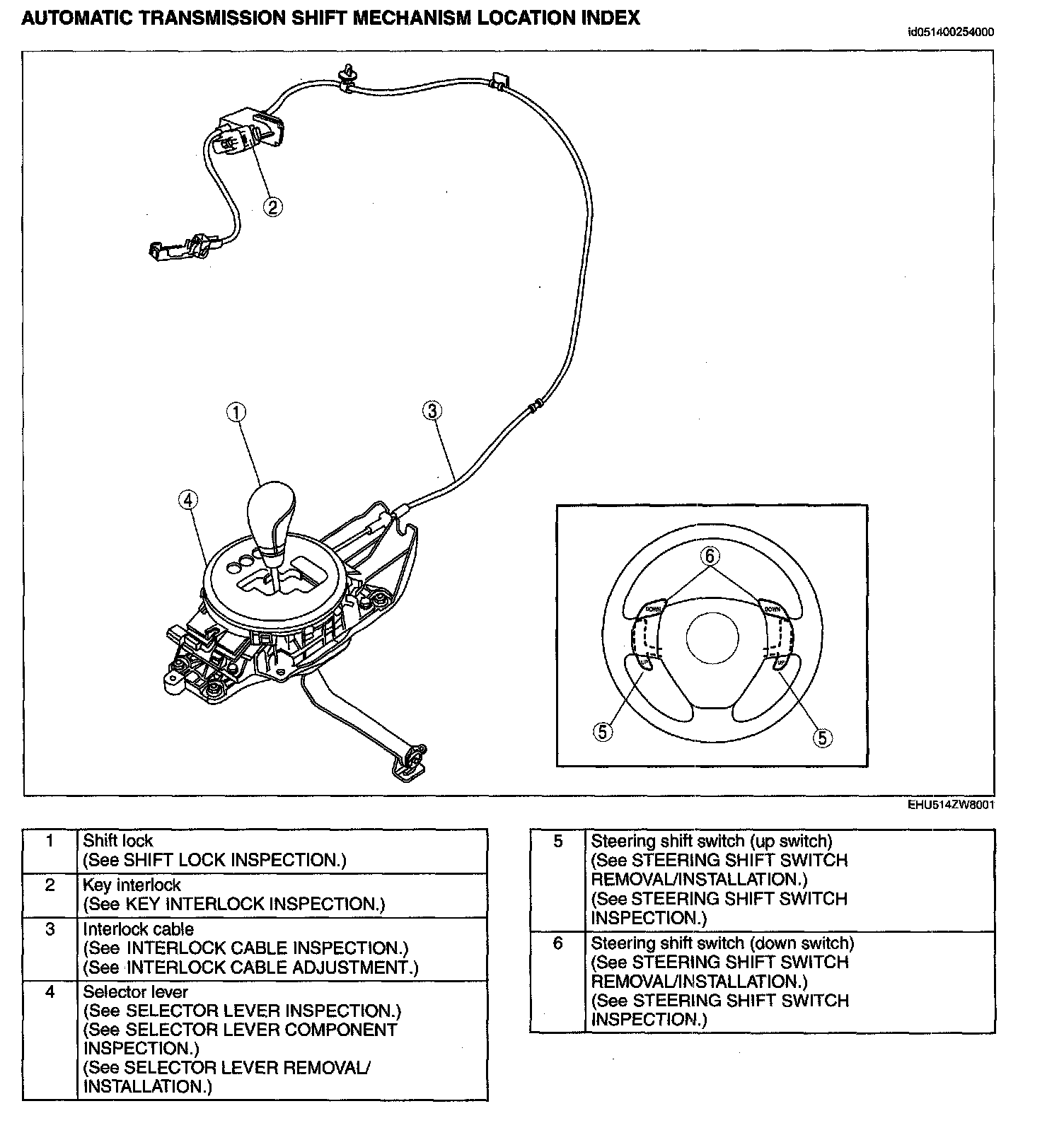

Automatic Transmission Shift Mechanism Location Index

Automatic Transmission Shift Mechanism Location Index:
