Sunroof / Moonroof Motor: Testing and Inspection

SUNROOF MOTOR INSPECTION

1. Measure the voltage at each terminal (other than terminal G).
- If not as specified, inspect the parts listed under "Inspection item" and the related wiring harnesses.
2. Disconnect the negative battery cable.

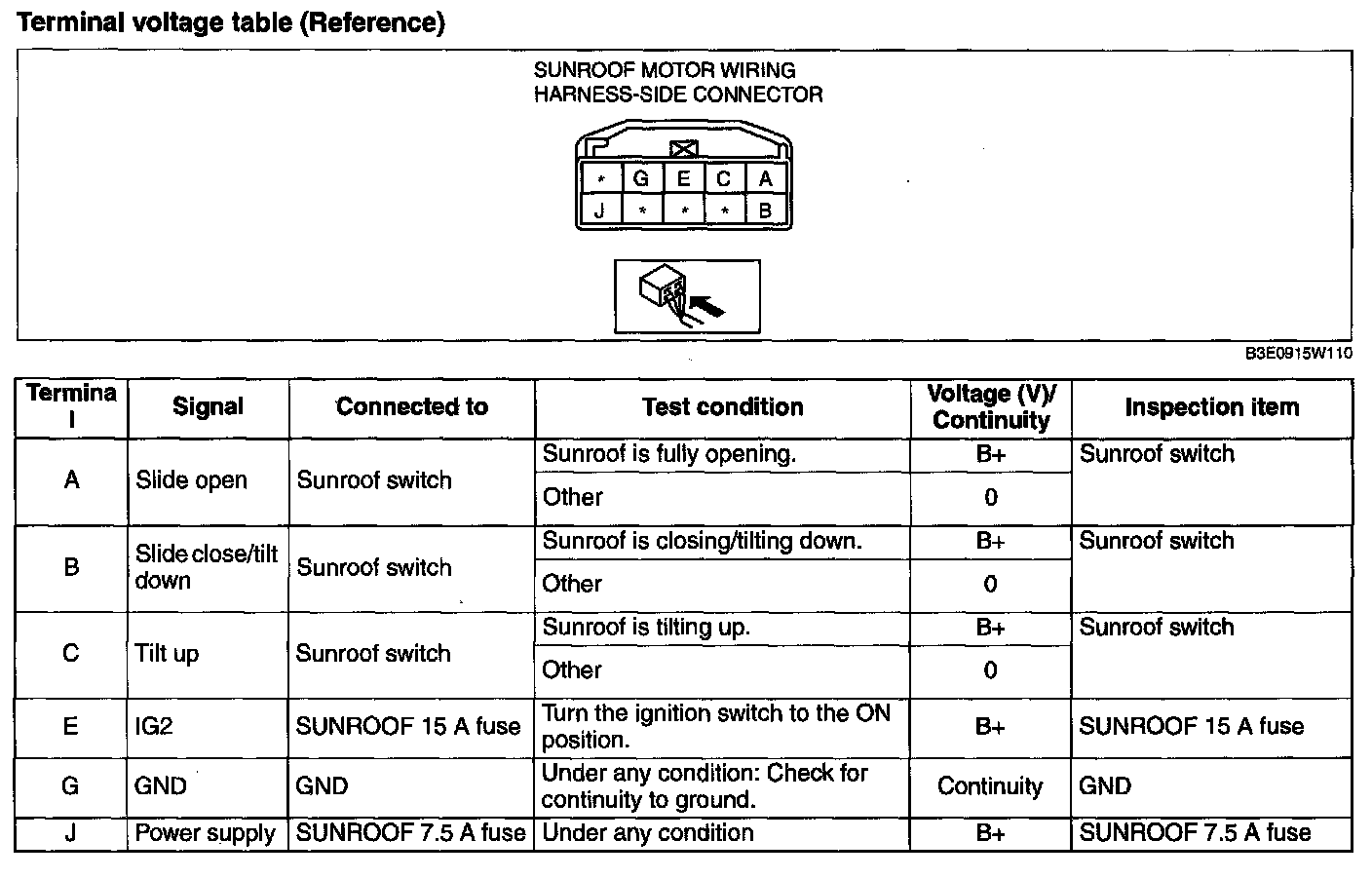

3. Verity that continuity at terminal G is as indicated in the Terminal Voltage Table (Reference).
4. If the parts and wiring harnesses are normal but the system still does not work properly, replace the sunroof relay.
