Cellular Phone Microphone: Service and Repair

MICROPHONE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Side wall.
2. Front console.
3. Center panel module (with audio unit).
4. Center panel (without audio unit).
5. Climate control unit (with car-navigation system).
6. Car-navigation unit (with car-navigation system).
7. Dashboard center panel.

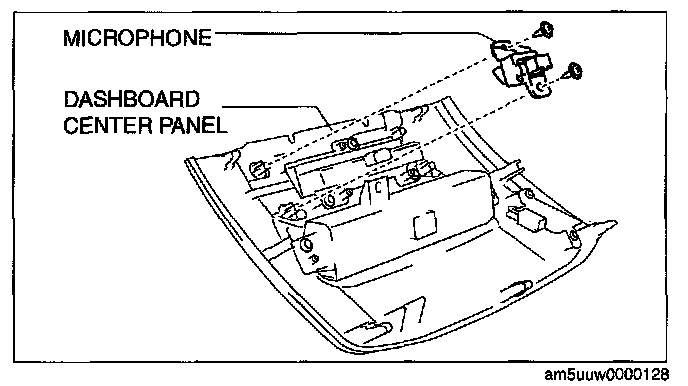

3. Remove the microphone.
4. Install in the reverse order of removal.
