Driver/Vehicle Information Display: Service and Repair

INFORMATION DISPLAY REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts:
1. Side wall.
2. Front console.
3. Center panel module.
4. Climate control unit (with car-navigation system).
5. Car-navigation unit (with car-navigation system).
6. Dashboard center panel.

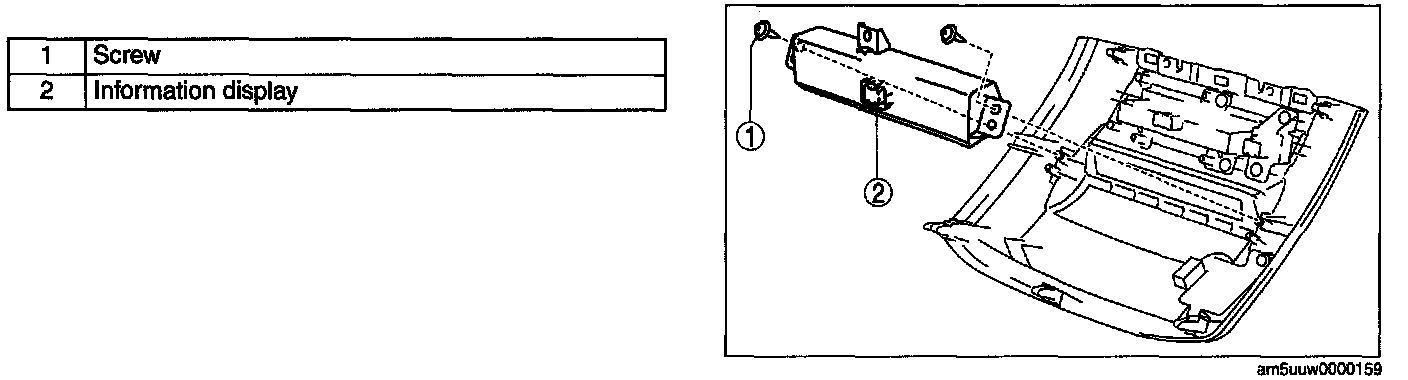

4. Remove in the order indicated in the table.






5. Install in the reverse order of removal.
