Auxiliary Input / Output Jack: Service and Repair

AUXILIARY JACK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the side wall.
3. Remove the front console.




4. Disconnect the auxiliary jack connector.

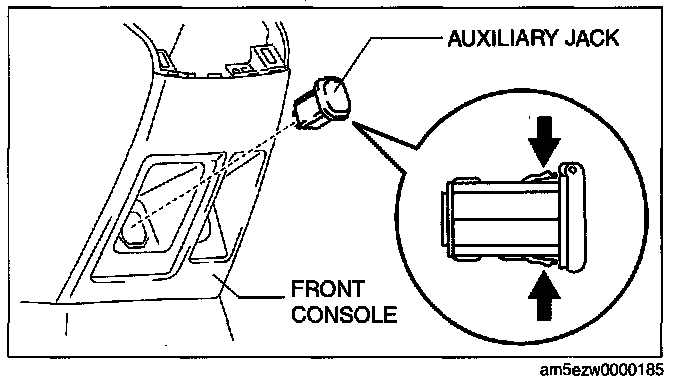

5. Squeeze the tabs of auxiliary jack and pull it outward to remove it.
6. Install in the reverse order of removal.
