Rear

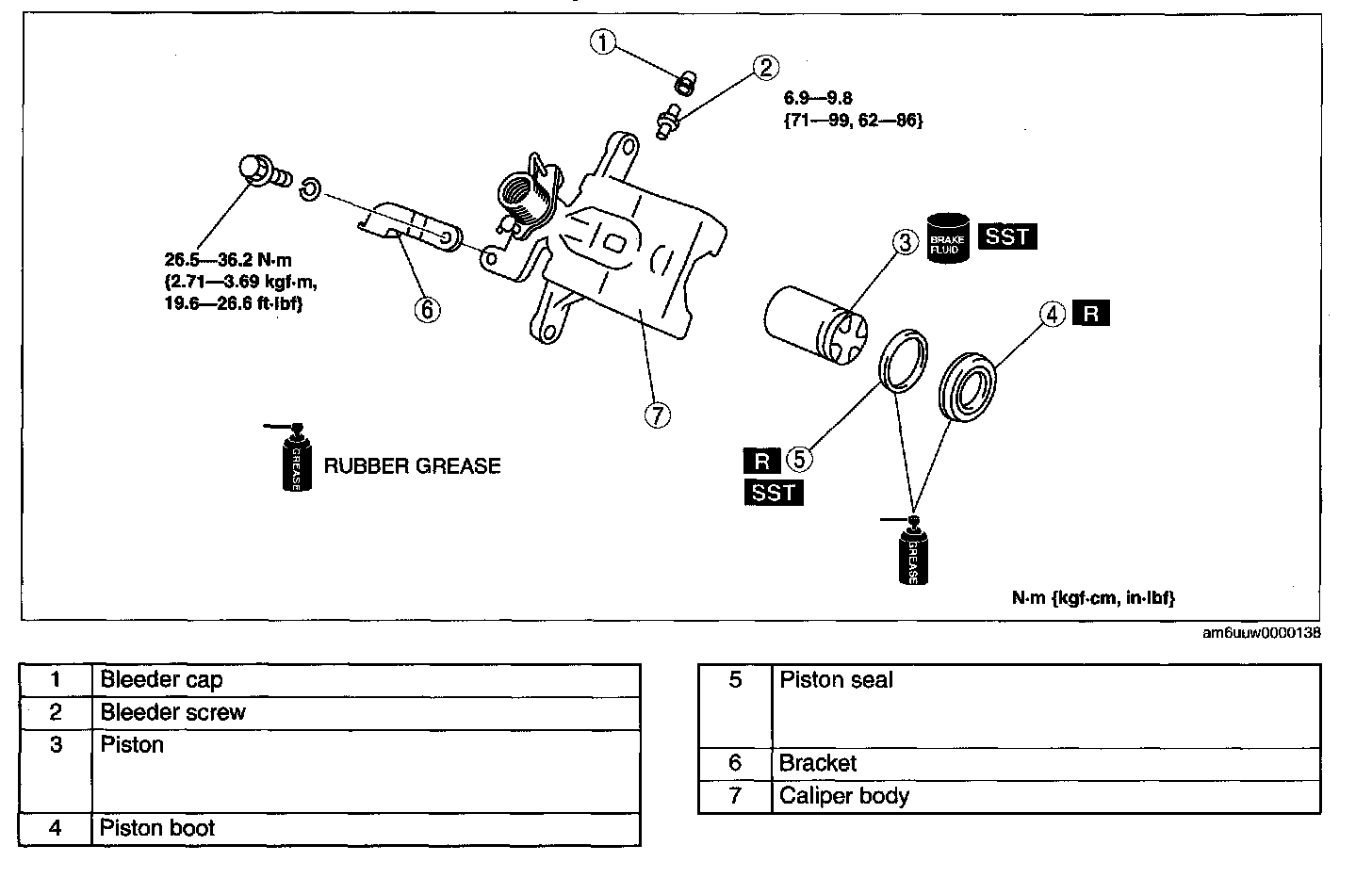

CALIPER (REAR) DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly

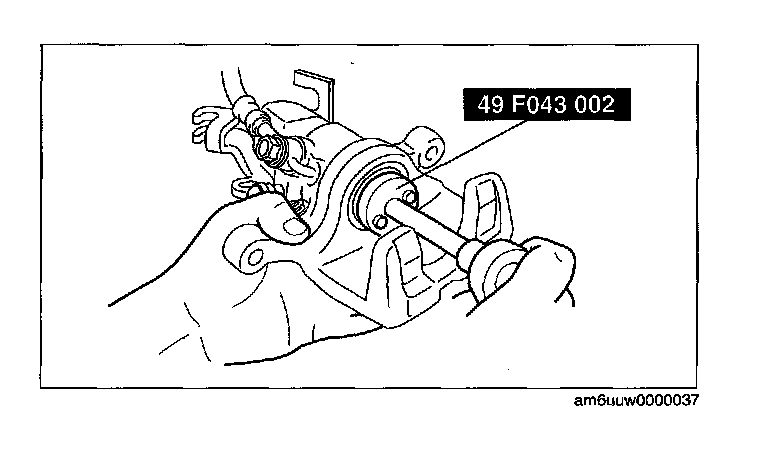

Piston Disassembly/Assembly Note

^ Remove/install the piston using the SST.
