Brake Master Cylinder: Service and Repair

MASTER CYLINDER REMOVAL/INSTALLATION [L3, AJ]

1. Remove the battery and battery tray.

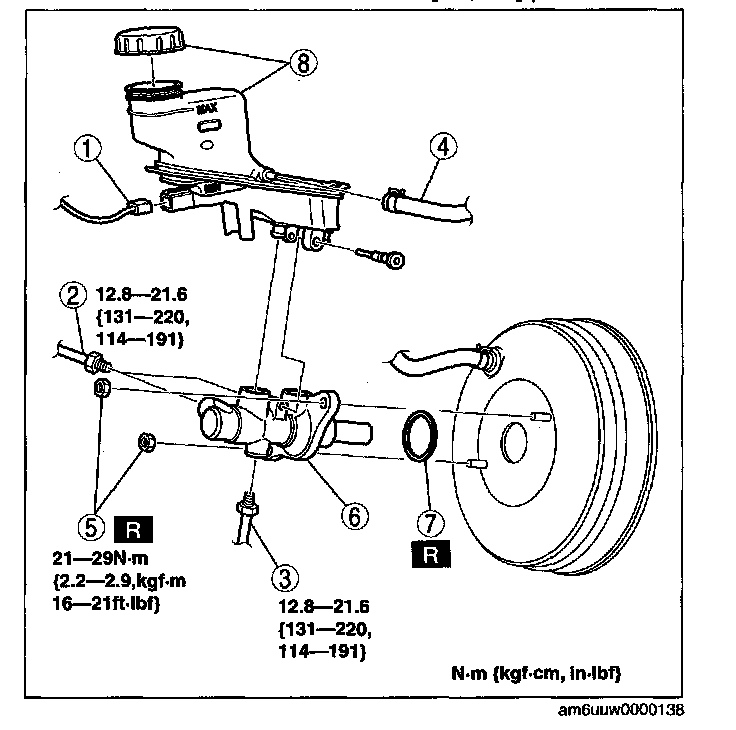

2. Remove in the order indicated in the table.








3. Install in the reverse order of removal.
