Hydraulic System Junction Block: Service and Repair

DUAL PROPORTIONING VALVE (WITHOUT ABS/TCS OR DSC) AND BRAKE PIPE JOINT (WITH [ABS/TCS] OR DSC) REPLACEMENT

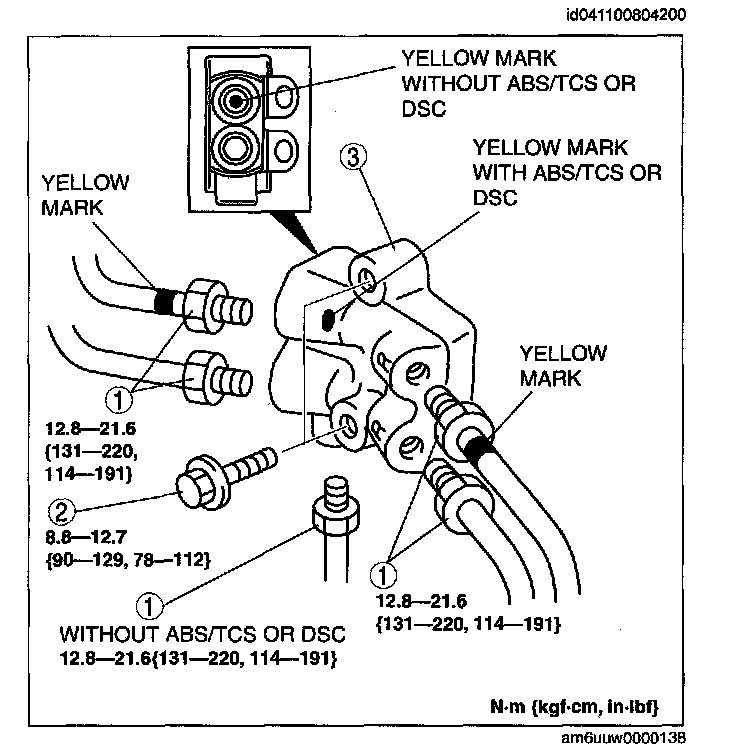

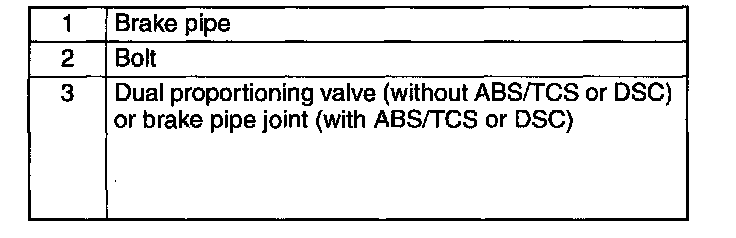

1. Remove in the order indicated in the table.





2. Install in the reverse order of removal.

Dual Proportioning Valve (Without ABS/TCS or DSC) or Brake Pipe Joint (With ABS/TCS or DSC)

Installation Note

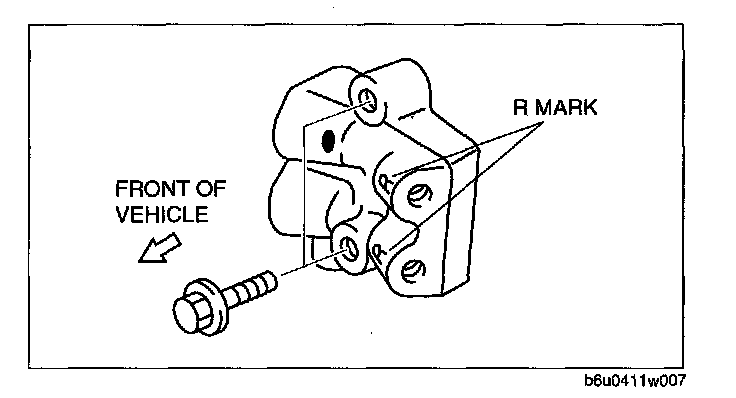

1. Install the dual proportioning valve (without ABS/ TCS or DSC) or brake pipe joint (with ABS/TCS or DSC) so that the R mark faces the left side of the vehicle.
