Blower Motor: Service and Repair

BLOWER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

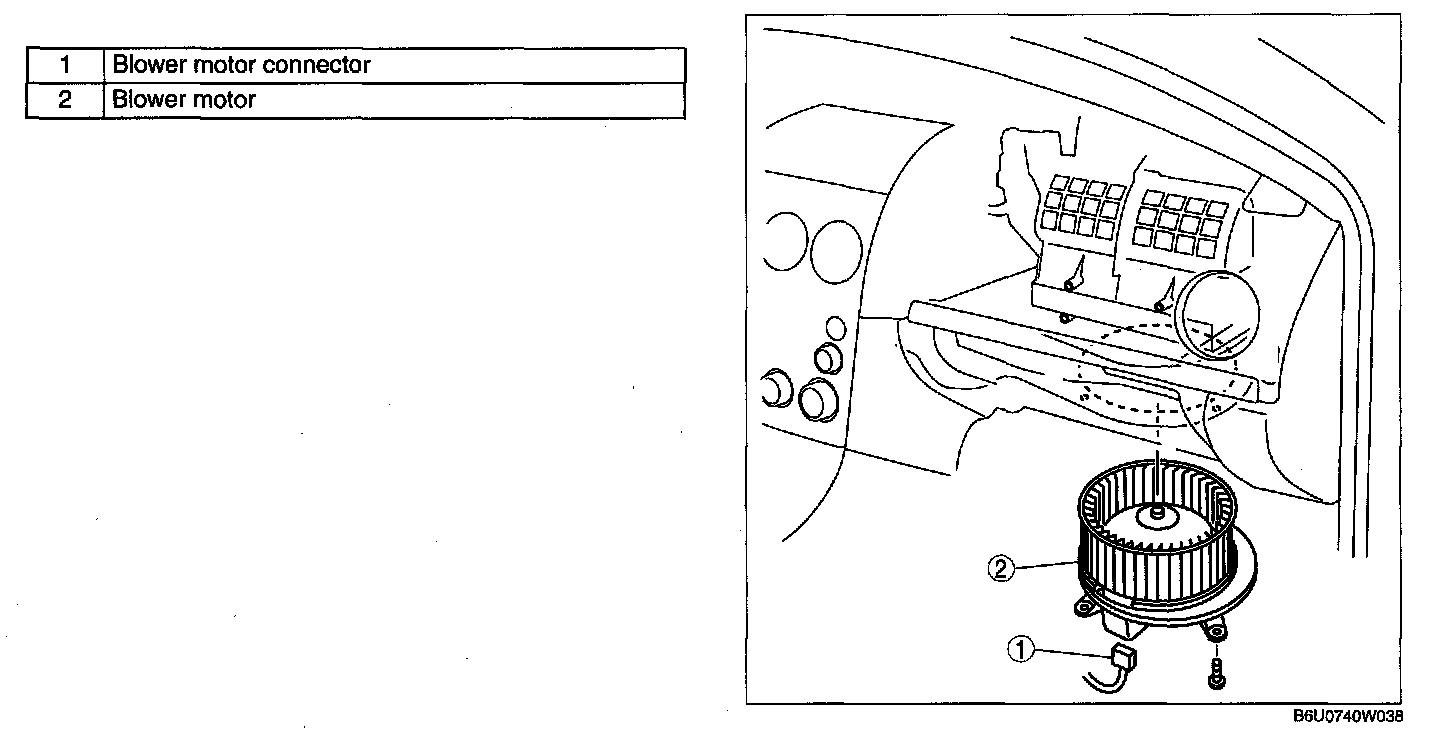

2. Remove in the order indicated in the table.






3. Install in the reverse order of removal.
