Component Tests and General Diagnostics

ABS HU/CM INSPECTION
1. Disconnect the ABS HU/CM connector.
2. Connect the negative battery cable.
3. Attach the tester lead to the ABS HU/CM harness side connector, then inspect voltage, continuity or resistance according to the standard (reference value) on the table.

Standard (Reference Value)

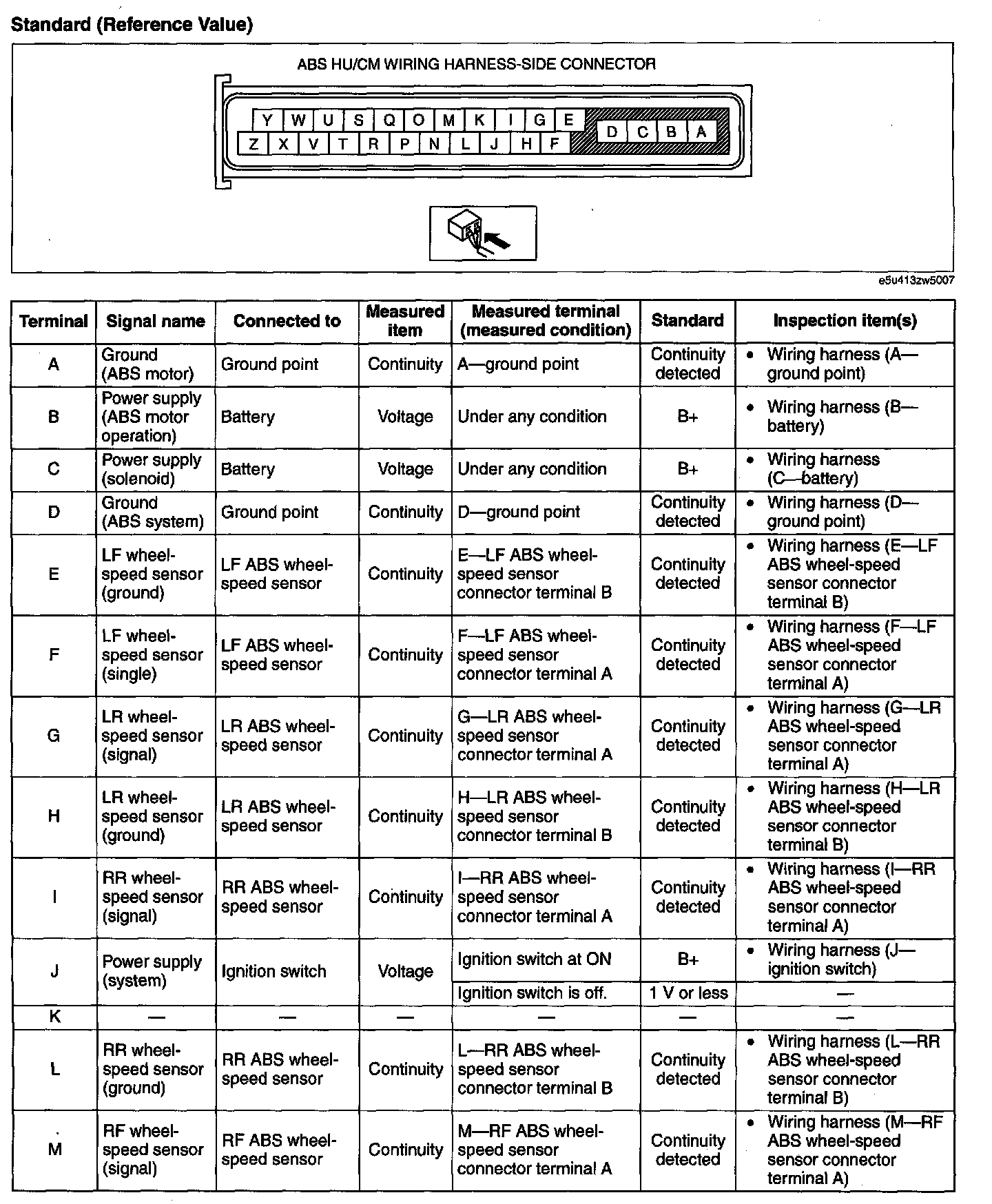

Standard (Reference Value) (Part 1):

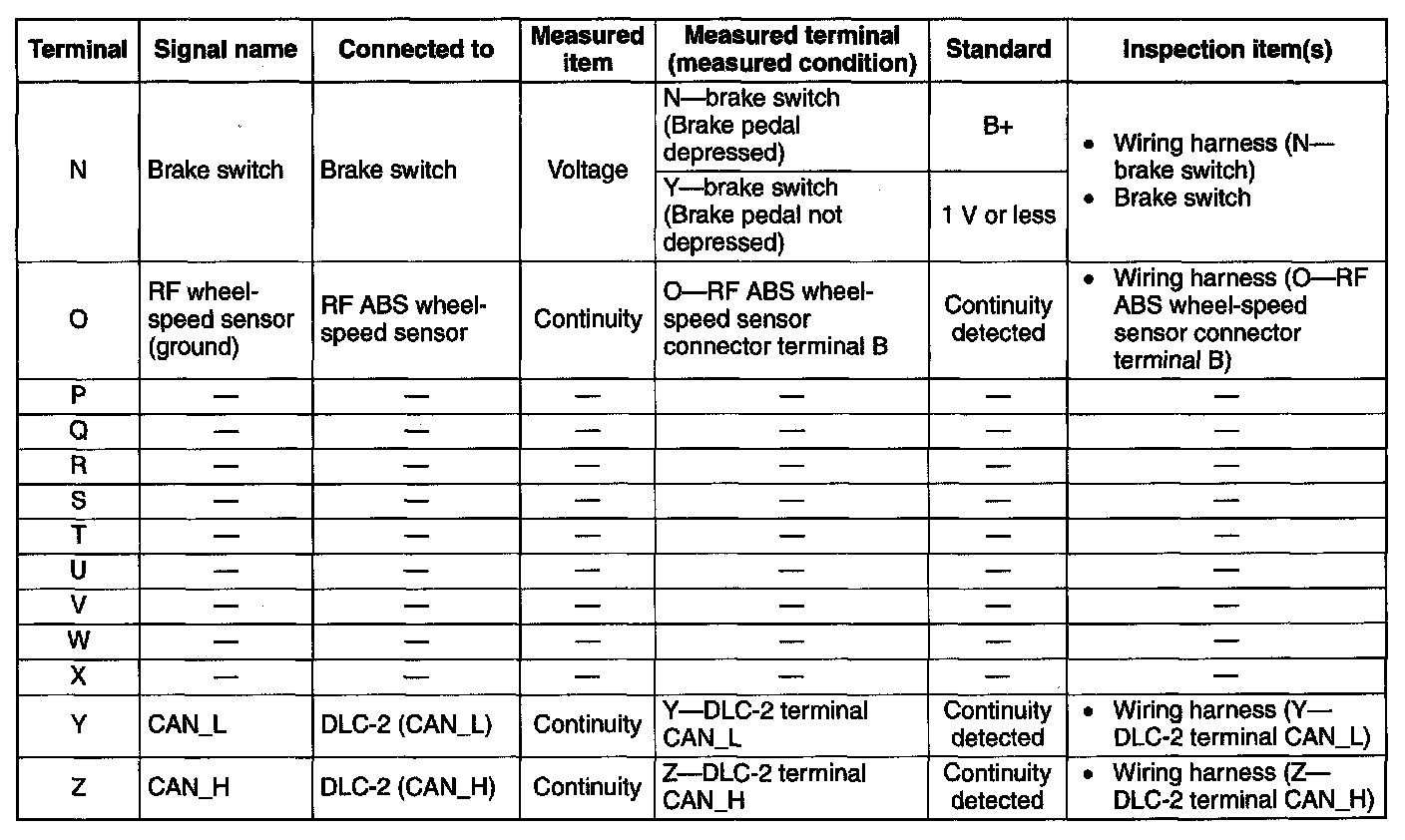

Standard (Reference Value) (Part 2):
