No.3 Brake System Warning Light Does Not Illuminate When the Ignition Switch Is Turned to the on Position

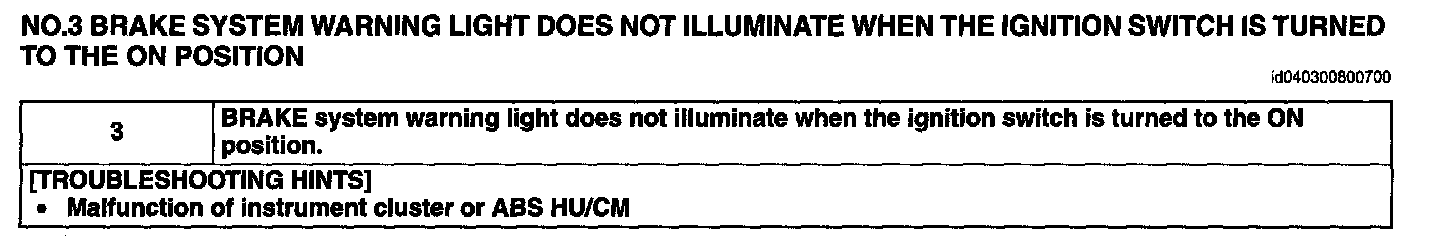

NO.3 BRAKE SYSTEM WARNING LIGHT DOES NOT ILLUMINATE WHEN THE IGNITION SWITCH IS TURNED TO THE ON POSITION

No.3 Brake System Warning Light Does Not Illuminate When the Ignition Switch Is Turned to the on Position:

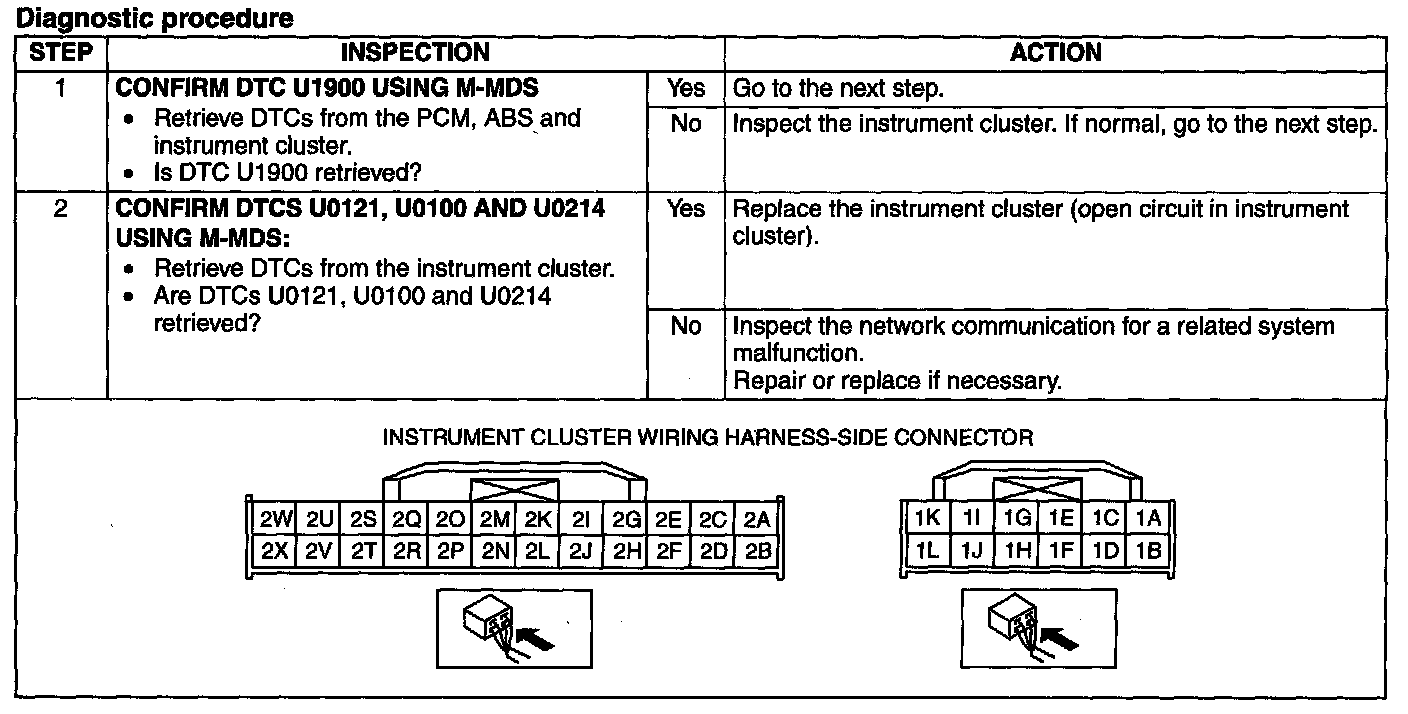

Diagnostic procedure

Step 1-Step 2:
