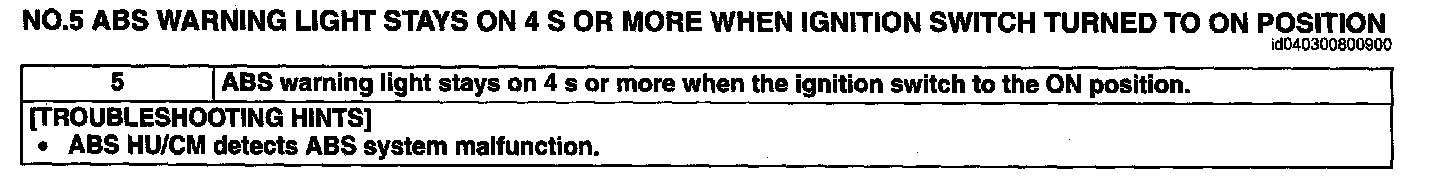

No.5 ABS Warning Light Stays on 4 S or More When Ignition Switch Turned to on Position

NO.5 ABS WARNING LIGHT STAYS ON 4 S OR MORE WHEN IGNITION SWITCH TURNED TO ON POSITION

No.5 ABS Warning Light Stays on 4 S or More When Ignition Switch Turned to on Position:

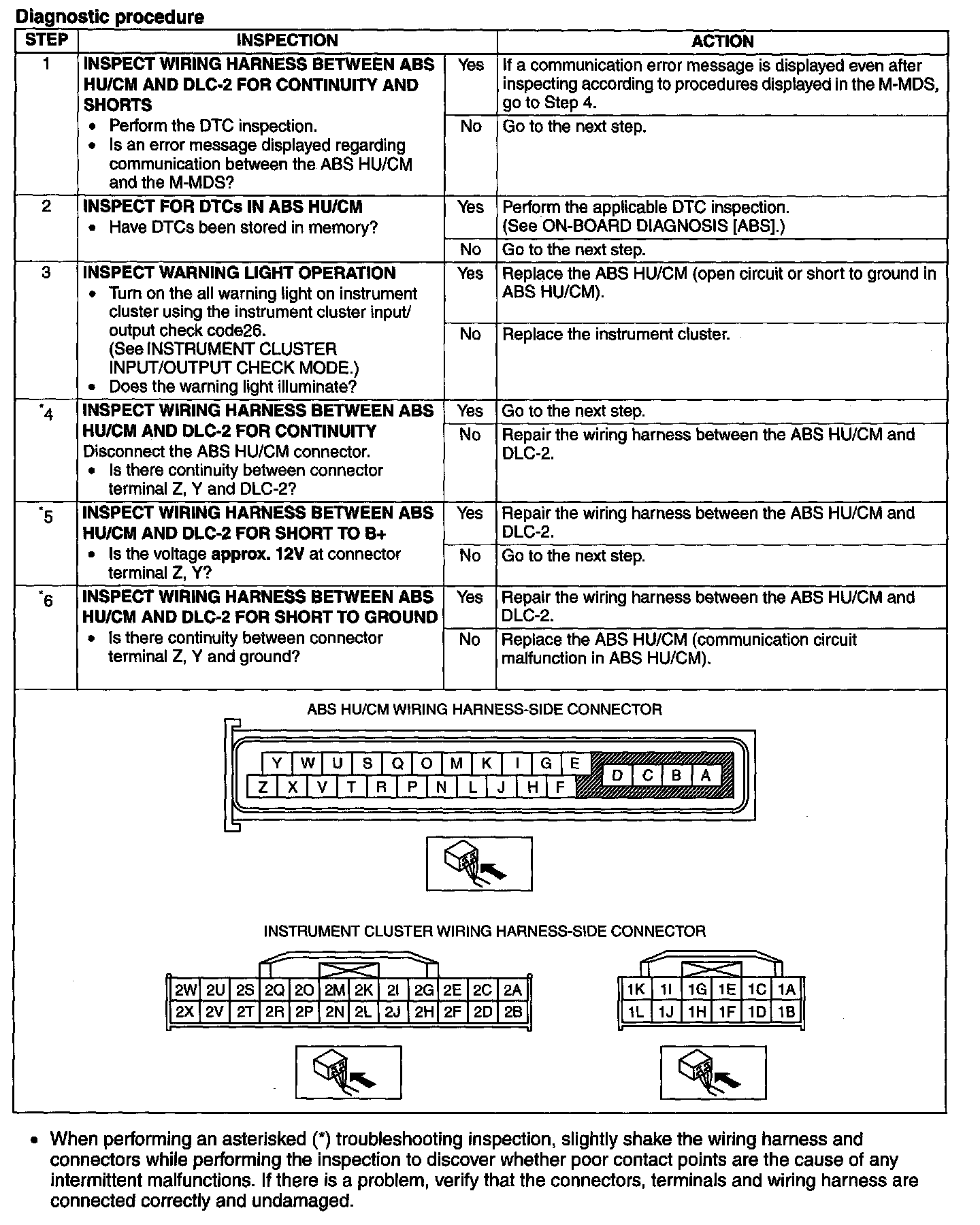

Diagnostic procedure

Step 1-Step 6:

^ When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, verify that the connectors, terminals and wiring harness are connected correctly and undamaged.
