No.9 There Is A Malfunction In the System Even Though ABS, Brake Sys., DSC Ind., DSC Off Lights Do Not Illuminate.

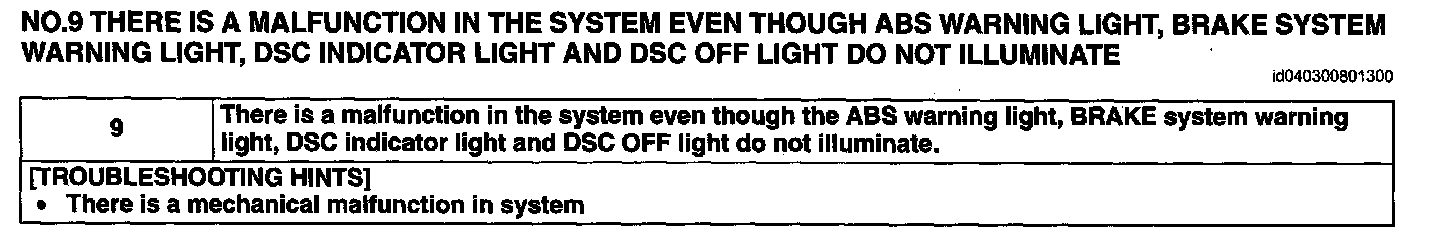

NO.9 THERE IS A MALFUNCTION IN THE SYSTEM EVEN THOUGH ABS WARNING LIGHT, BRAKE SYSTEM WARNING LIGHT, DSC INDICATOR LIGHT AND DSC OFF LIGHT DO NOT ILLUMINATE

No.9 There Is A Malfunction In the System Even Though ABS Warning Light, Brake System Warning Light, DSC Indicator Light and DSC Off Light Do Not Illuminate:

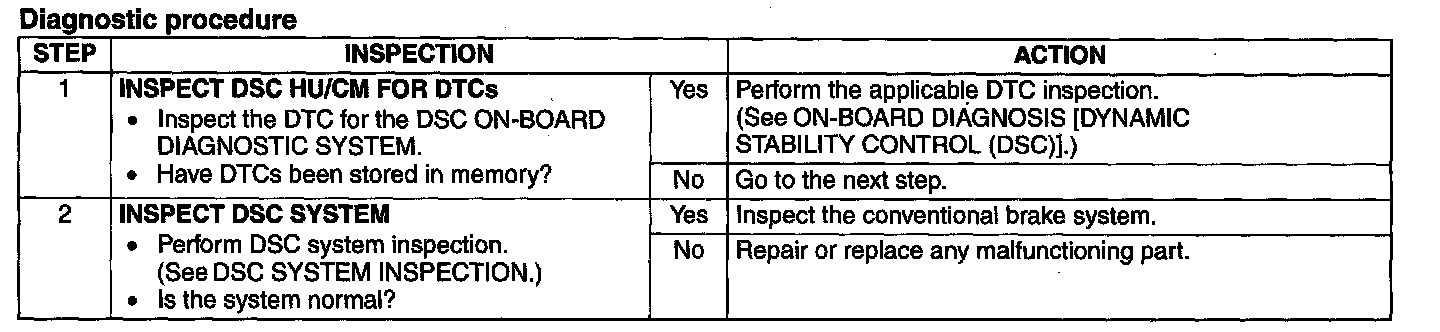

Diagnostic procedure

Step 1-Step 2:
