Rear Trailing Link (Lower) Removal/Installation
Rear Trailing Link (Lower) Removal/Installation

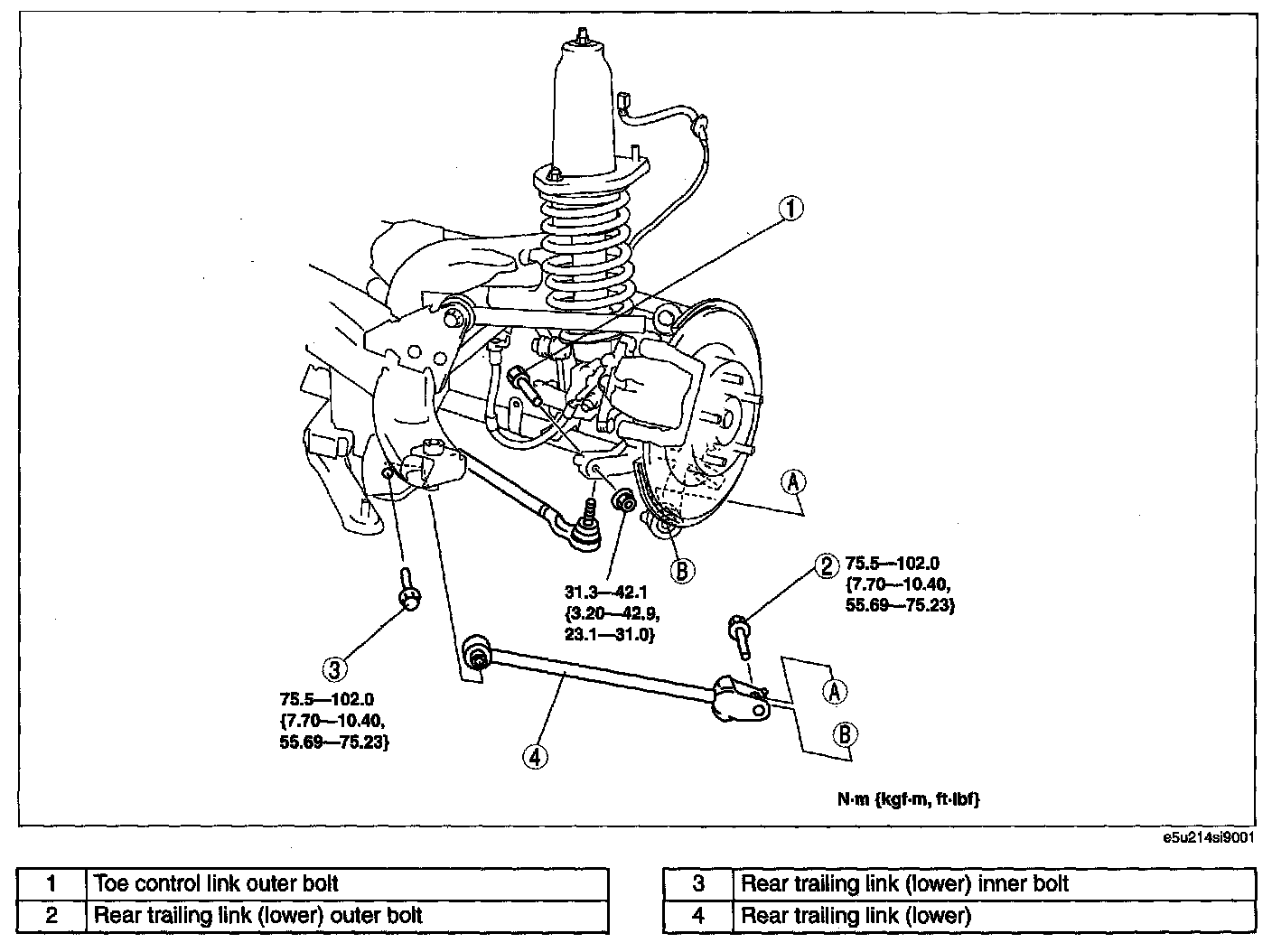

REAR TRAILING LINK (LOWER) REMOVAL/INSTALLATION
1.
Remove in the order indicated in the table.
2.
Install in the reverse order of removal,
3.
Inspect the rear wheel alignment.
