Assembly Procedure

Assembly Procedure





1. Apply ATF to the new O-rings.
2. Install the O-rings to the B4 brake piston.

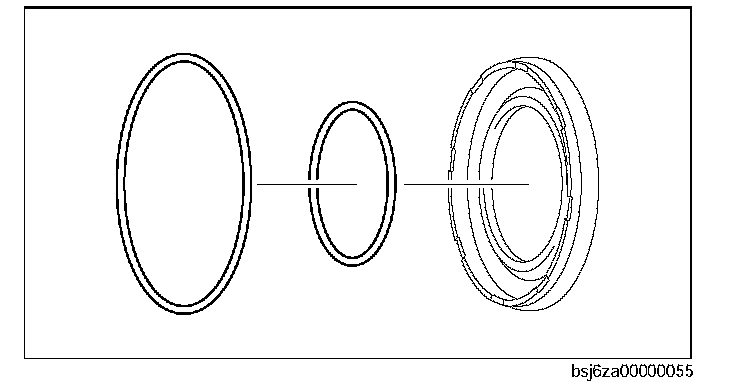

3. Apply ATF to the new O-rings.





4. Install the O-rings to the sleeve.

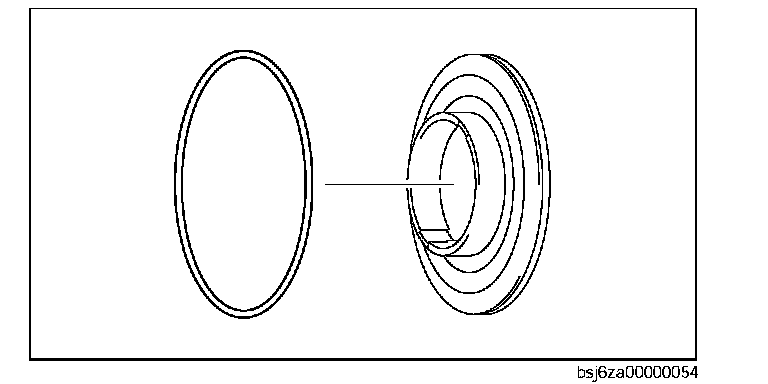

5. Apply ATF to the new O-ring.





6. Install the O-rings to the B4 brake piston.

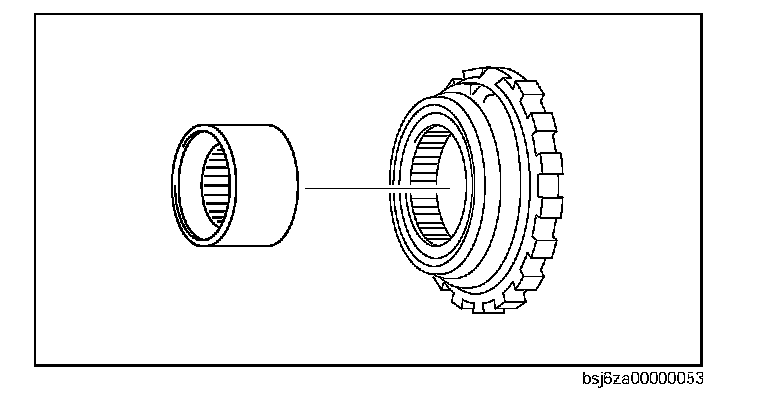

7. Apply ATF to the inner race and the F3 one-way clutch component.





8. Install the inner race to the F3 one-way clutch component.

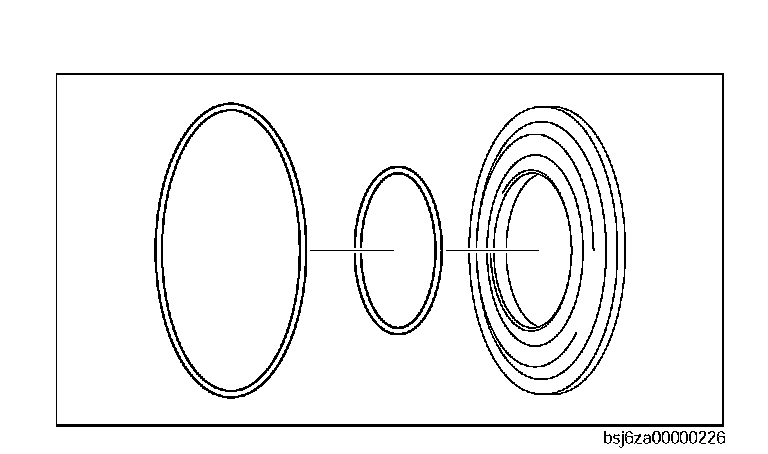

9. Apply ATF to the new O-ring.





10. Install the O-ring to the B2 brake piston.

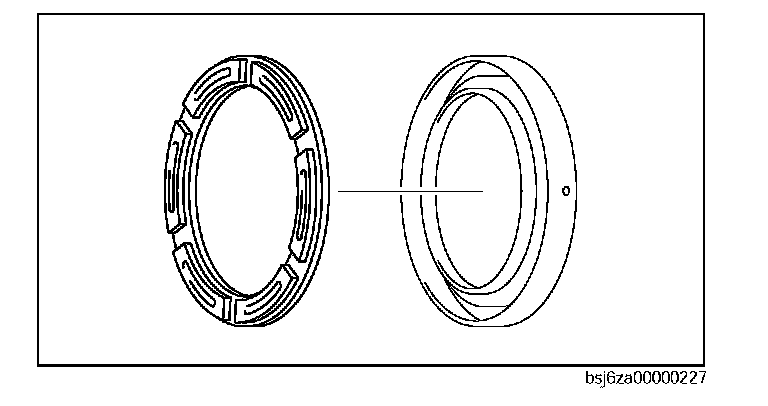

11. Apply ATF to the brake cylinder and the B2 brake piston.

Caution: Do not damage the O-ring.





12. Install the B2 brake piston to the brake cylinder.
