Disassembly

Disassembly

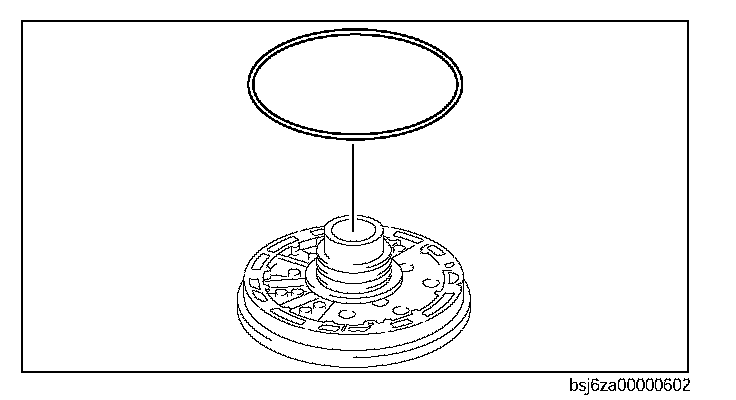

1. Remove the O-ring from the oil pump component.

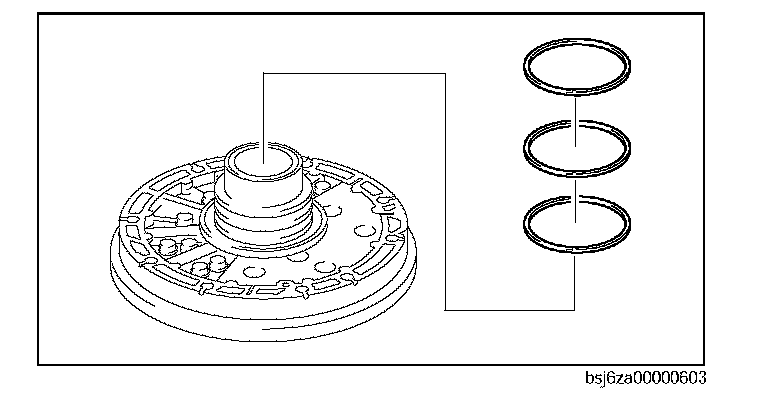

2. Remove the seal ring from the oil pump shaft.

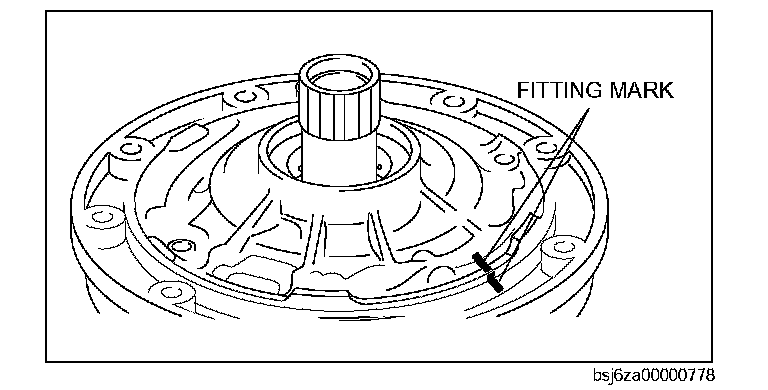

3. Put an installation mark on the pump housing and oil pump shaft.

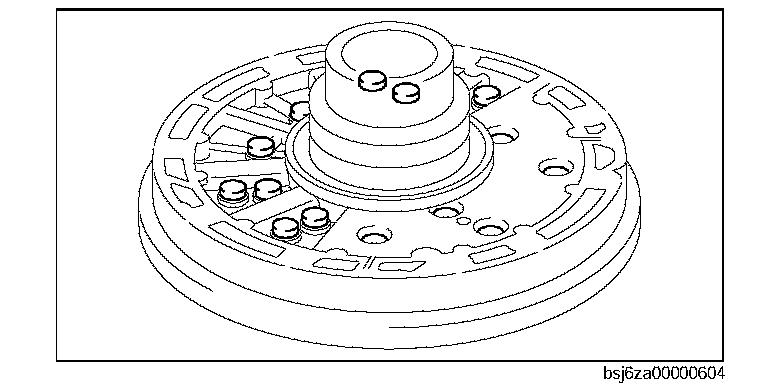

4. Remove the screw from the oil pump.

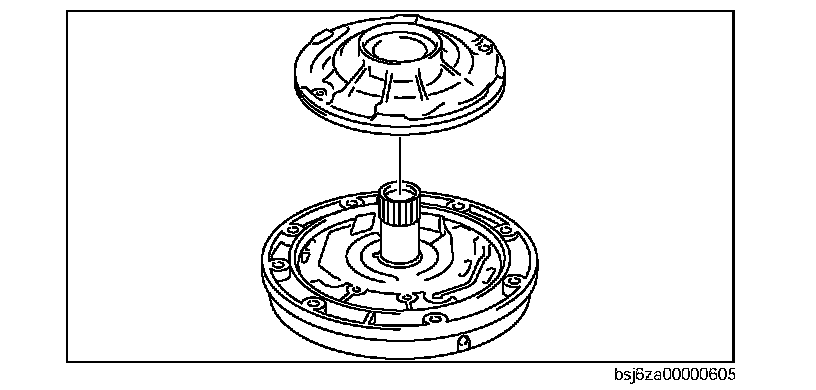

5. Remove the oil pump shaft from the pump housing.

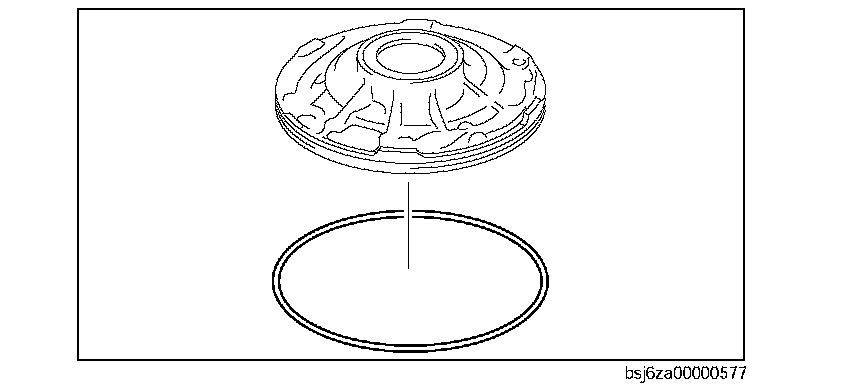

6. Remove the O-ring from the pump housing.

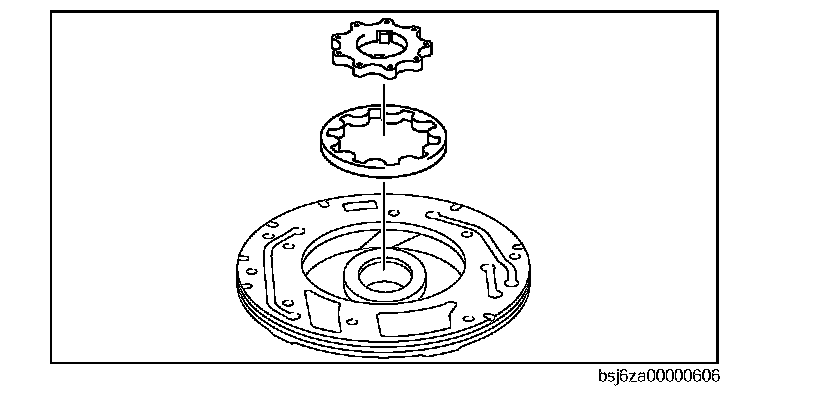

7. Remove the inner oil pump gear and outer oil pump gear from the pump housing.





8. Using a flathead screwdriver, remove the oil seal from the pump housing.

Caution: Do not damage the bushing on the pump housing.
