4TH Counter Gear, 4TH Synchronizer Ring, 4TH Bearing Inner Race Assembly Note

4th Counter Gear, 4th Synchronizer ring, 4th Bearing Inner Race Assembly Note

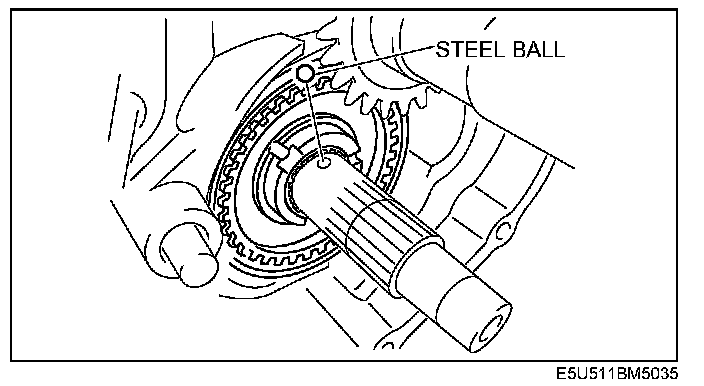

1. Install the steel ball to the countershaft.
2. Assemble the 4th counter gear component to the 3rd/4th clutch hub.

Caution:
^ Be sure to assemble the clutch hub components and synchronizer ring components while aligning the synchronizer ring grooves with the synchronizer keys.
^ Be sure to align the synchronizer ring projections with the inner cone notches.

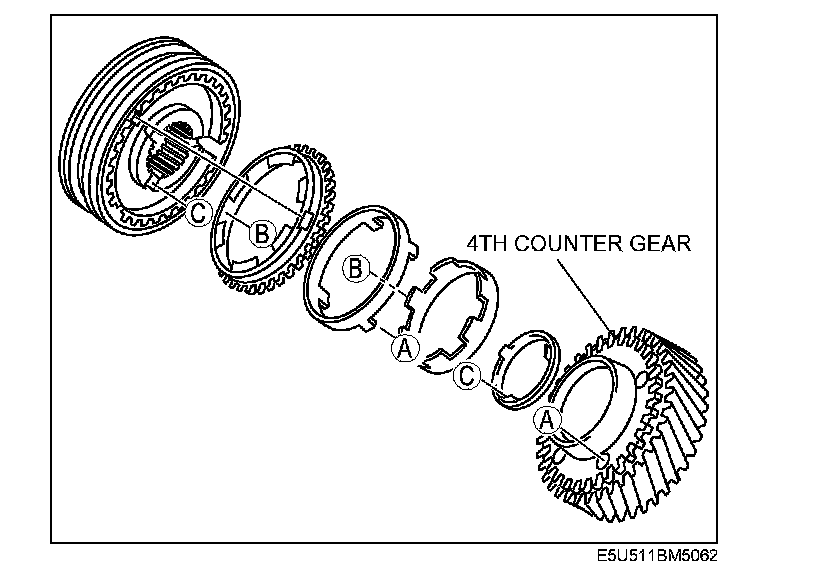

^ Be sure to assemble the gears and the synchronizer ring components while aligning the double cone projections with the gear holes as shown in the figure.
^ Align the friction damper projections with the clutch hub grooves.





3. Align the ball groove position of the 4th counter gear bearing inner race and assemble it to the countershaft.
