Child Seat Tether Attachment: Service and Repair

CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

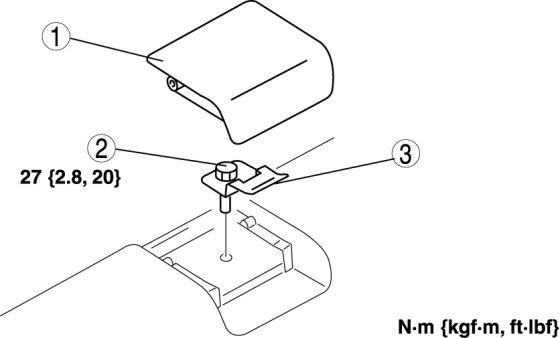

4 door

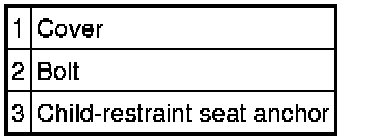

1. Remove in the order indicated in the table.










2. Install in the reverse order of removal.

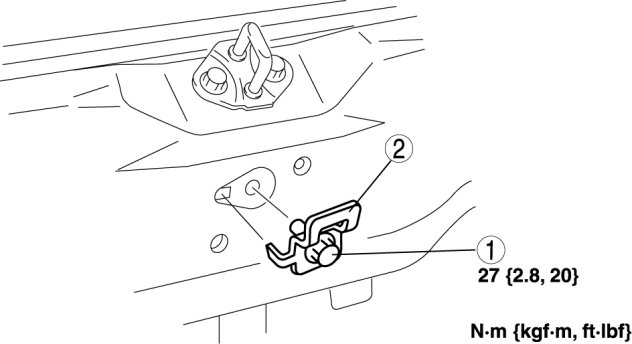

5 door

1. Remove the trunk end trim. Trunk End Trim Removal/Installation

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
