Driver/Vehicle Information Display: Service and Repair

INFORMATION DISPLAY REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Side wall (See Side Wall Removal/Installation)

b. Front console (See Front Console Removal/Installation)

c. Center panel module (See Center Panel Module Removal/Installation)

d. Climate control unit (with car-navigation system) (See Climate Control Unit Removal/Installation [Full-Auto Air Conditioner])

e. Car-navigation unit (with car-navigation system) (See Center Panel Module Removal/Installation)

f. Dashboard center panel (See Dashboard Center Panel Removal/Installation)

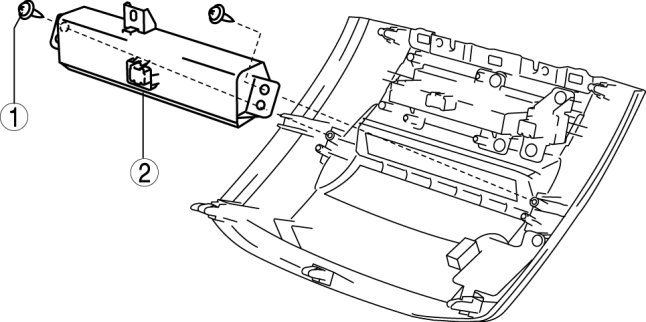

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
