Auxiliary Input / Output Jack: Service and Repair

AUXILIARY JACK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the side wall. Side Wall Removal/Installation

3. Remove the front console. Front Console Removal/Installation

4. Disconnect the auxiliary jack connector.

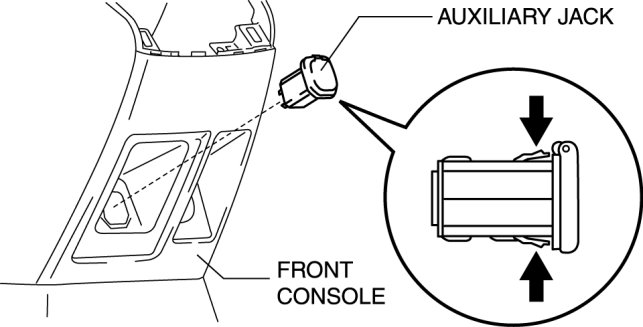

5. Squeeze the tabs of auxiliary jack and pull it outward to remove it.

6. Install in the reverse order of removal.
