Quick Diagnosis Chart

SYMPTOM TROUBLESHOOTING

- Verify the symptoms, and perform troubleshooting according to the appropriate number.

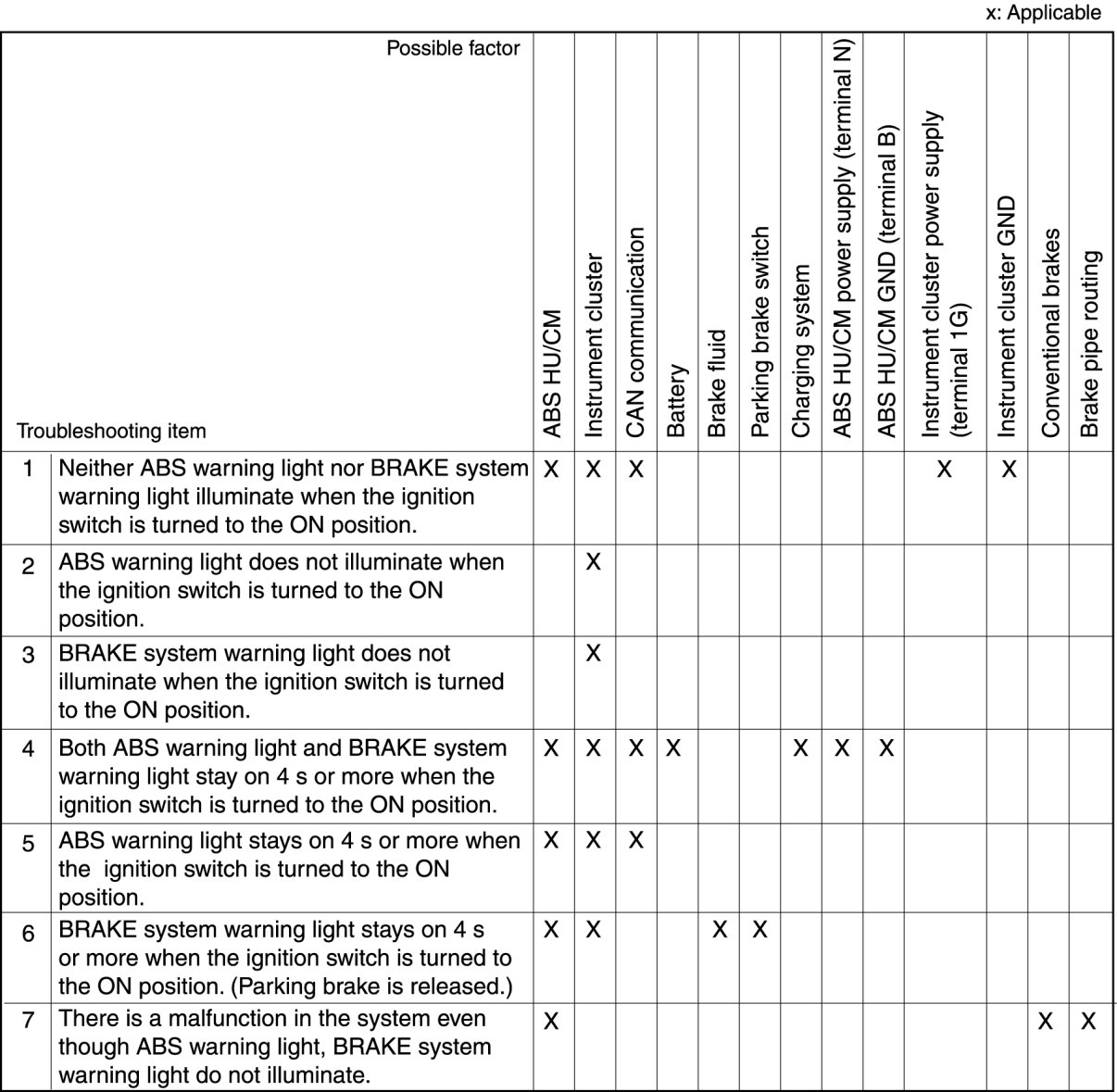

Quick Diagnosis Chart:
