Vacuum Brake Booster: Service and Repair

POWER BRAKE UNIT REMOVAL/INSTALLATION

1. Remove the battery and battery tray. Removal and Replacement

2. Remove the master cylinder. Service and Repair

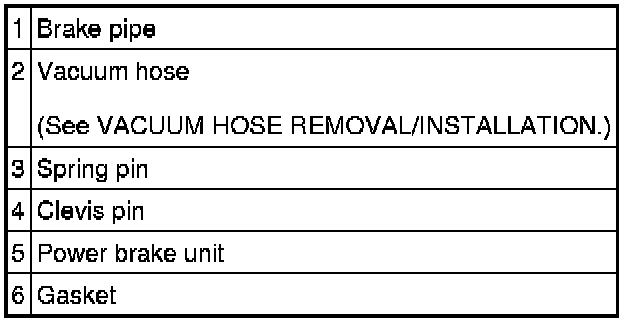

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

5. Inspect the brake pedal. Testing and Inspection

6. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. Service and Repair
