Windshield Wiper Motor Removal/Installation

WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the windshield wiper arm and blade. Windshield Wiper Arm And Blade Removal/Installation

3. Remove the cowl grille. Cowl Grille Removal/Installation

4. Remove the center cowl grille. Center Cowl Grille Removal/Installation

5. Remove the cowl panel. Cowl Panel Removal/Installation

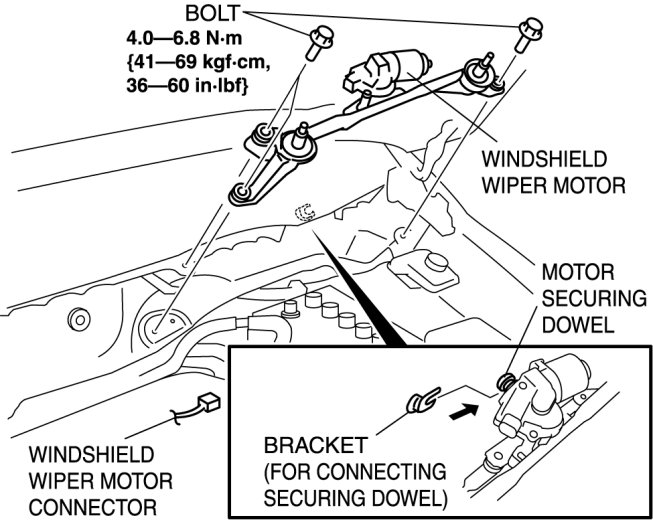

6. Remove the bolts.






7. Move the windshield wiper motor in the direction of the arrow, remove the securing dowel from the bracket, then remove the windshield wiper motor.

8. Disconnect the windshield wiper motor connector.

9. Install in the reverse order of removal.
