Parking Brake Lever: Service and Repair

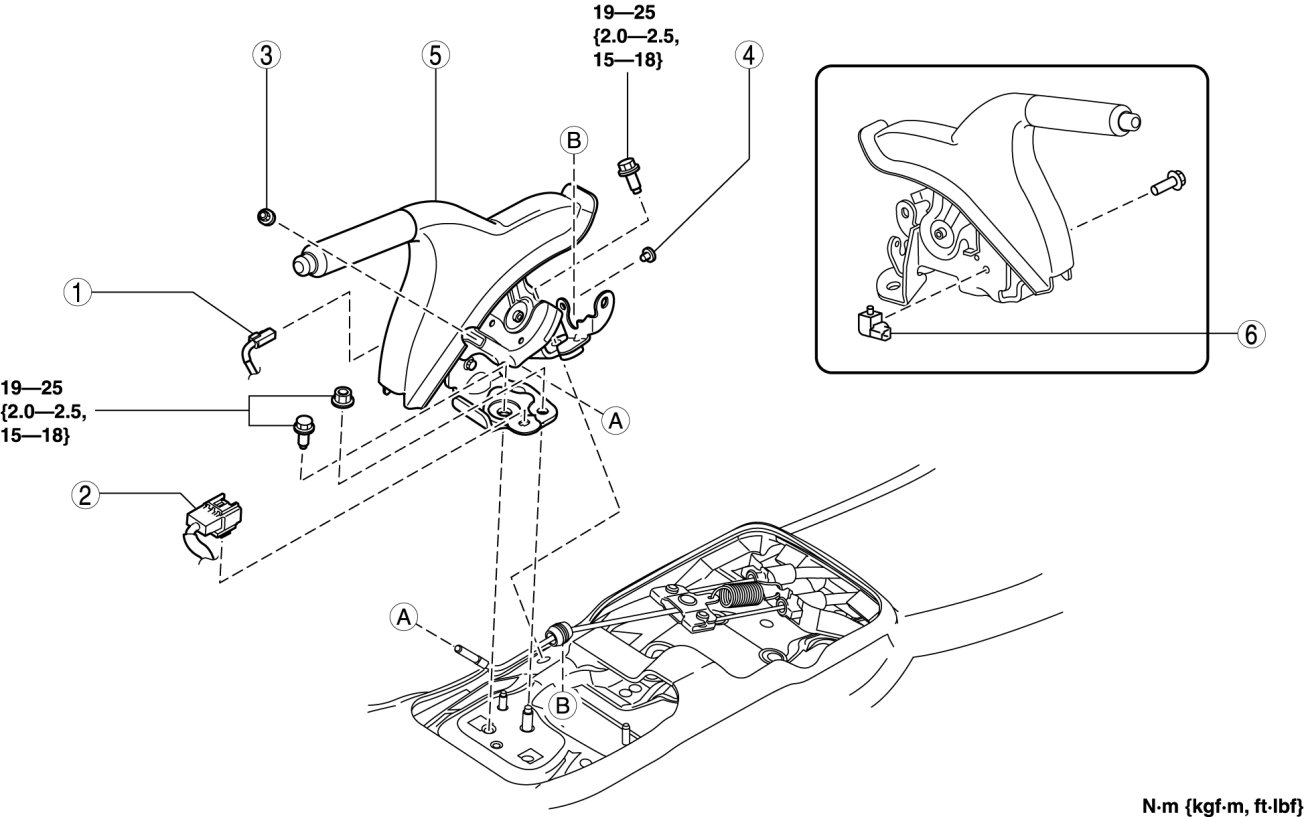

PARKING BRAKE LEVER REMOVAL/INSTALLATION

1. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Shift knob (MTX) Service and Repair

c. Shift panel Shift Panel Removal/Installation

d. Decoration panel (See Decoration Panel Removal/Installation.)

e. Center panel lower Center Panel Lower Removal/Installation

f. Rear console Rear Console Removal/Installation

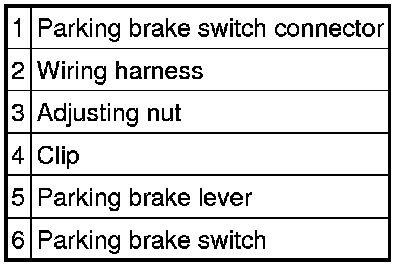

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. After installation, inspect the parking brake stroke and adjust if necessary. Testing and Inspection
