Home >> Mazda >> 2009 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Locations >> Connector Locations >> 0914-105 Rear-Short Cord (Keyless Entry)

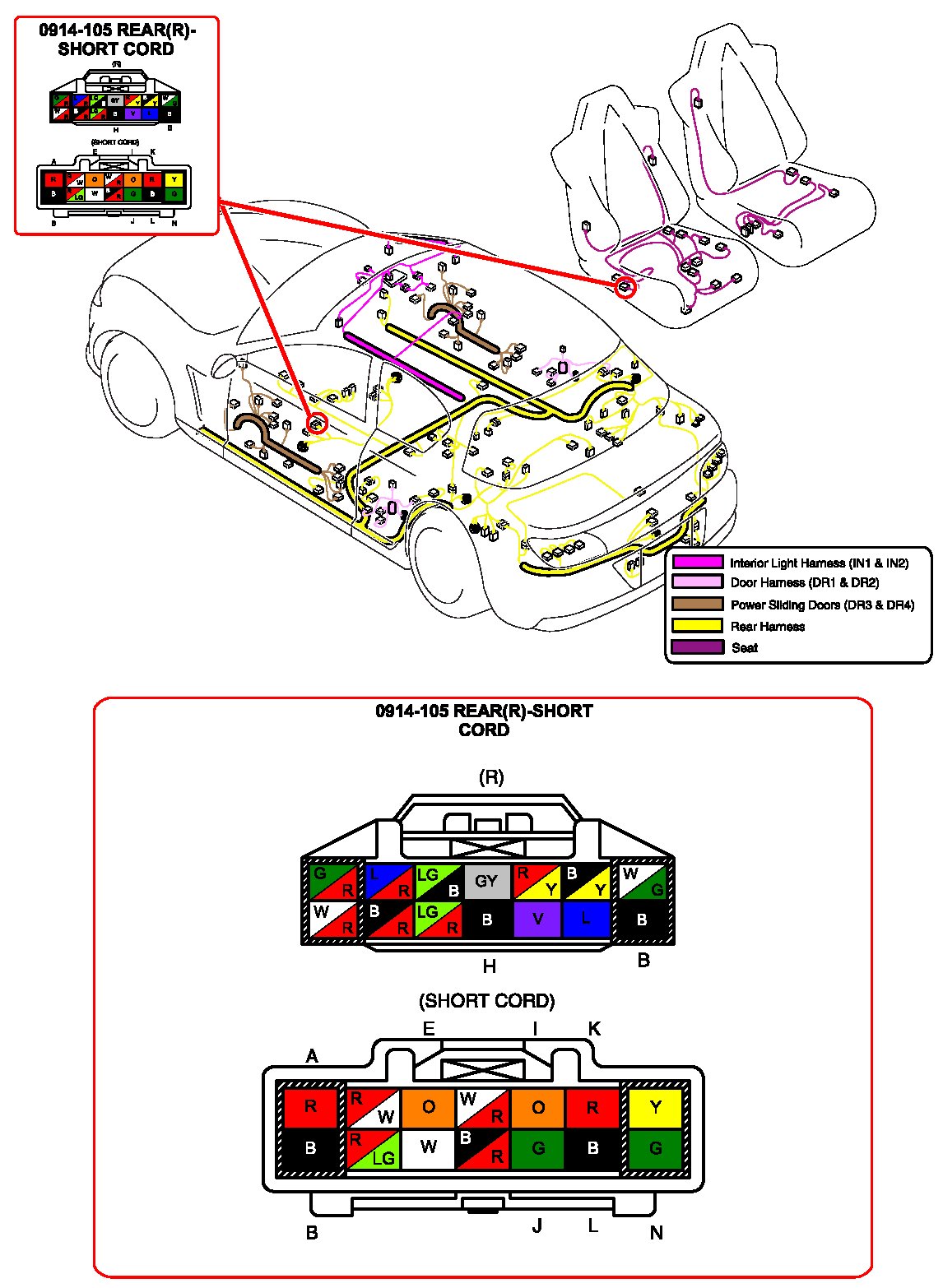

0914-105 Rear-Short Cord (Keyless Entry)

Rear-Short Cord:
