Locations
>>
Connector Locations
>>

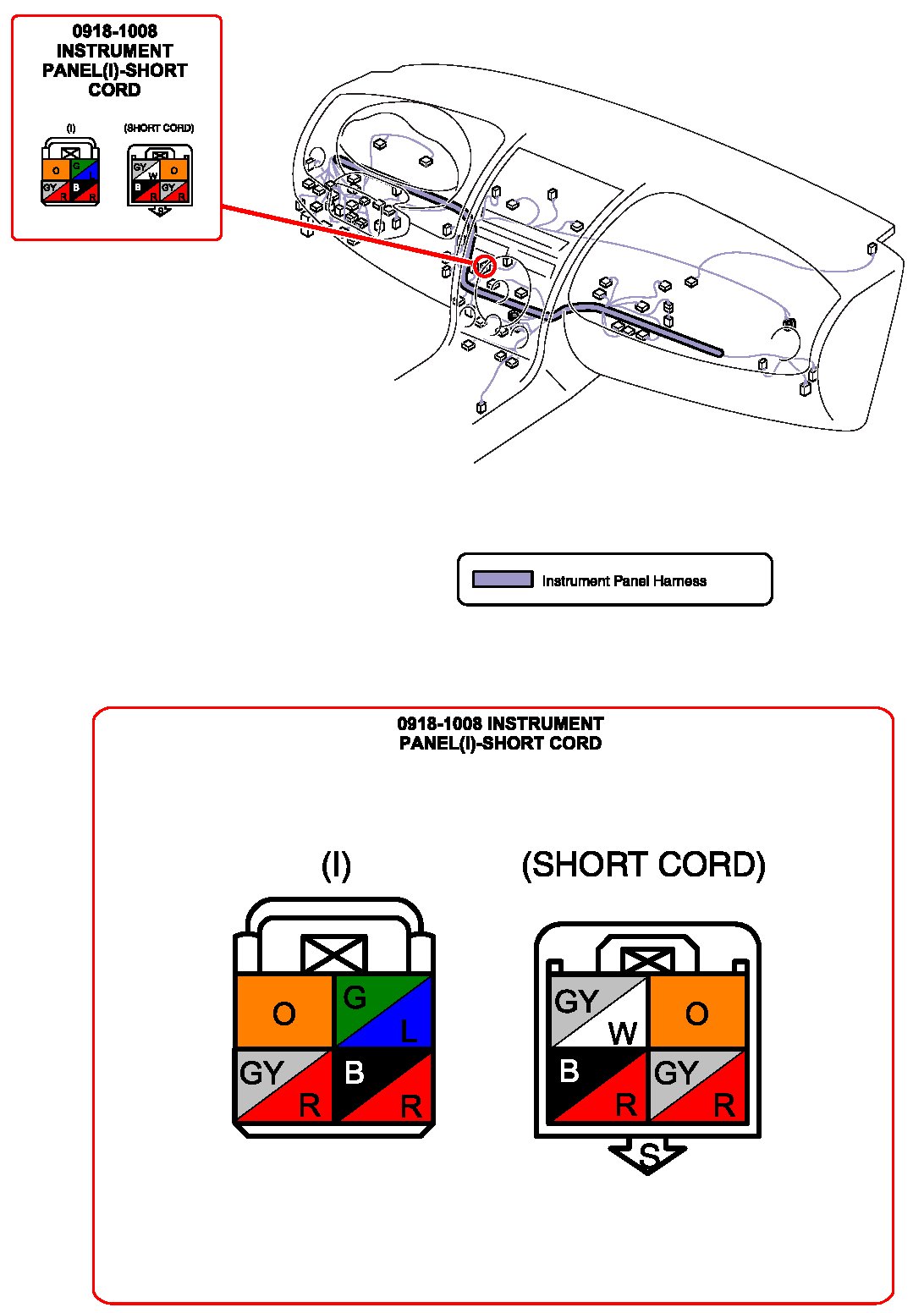

0918-1008 Instrument Panel-Short Cord
0918-1008 Instrument Panel-Short Cord
Instrument Panel-Short Cord:
