Vehicle Lifting: Service and Repair

JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS

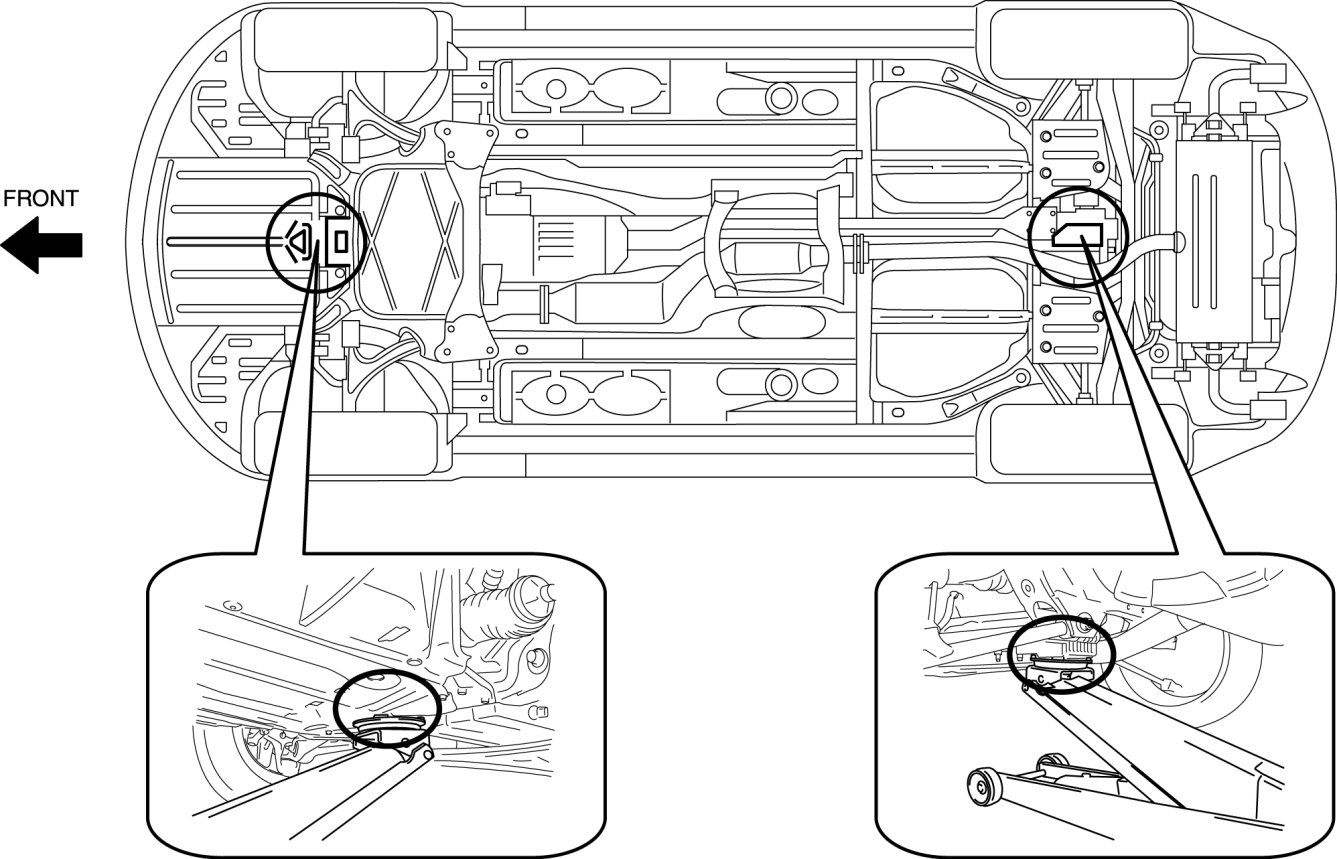

Jacking Positions

WARNING:
- Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.

- Use safety stands to support the vehicle after it has been lifted.

Front

- At the center of the front crossmember.

Rear

- At the center of the differential.

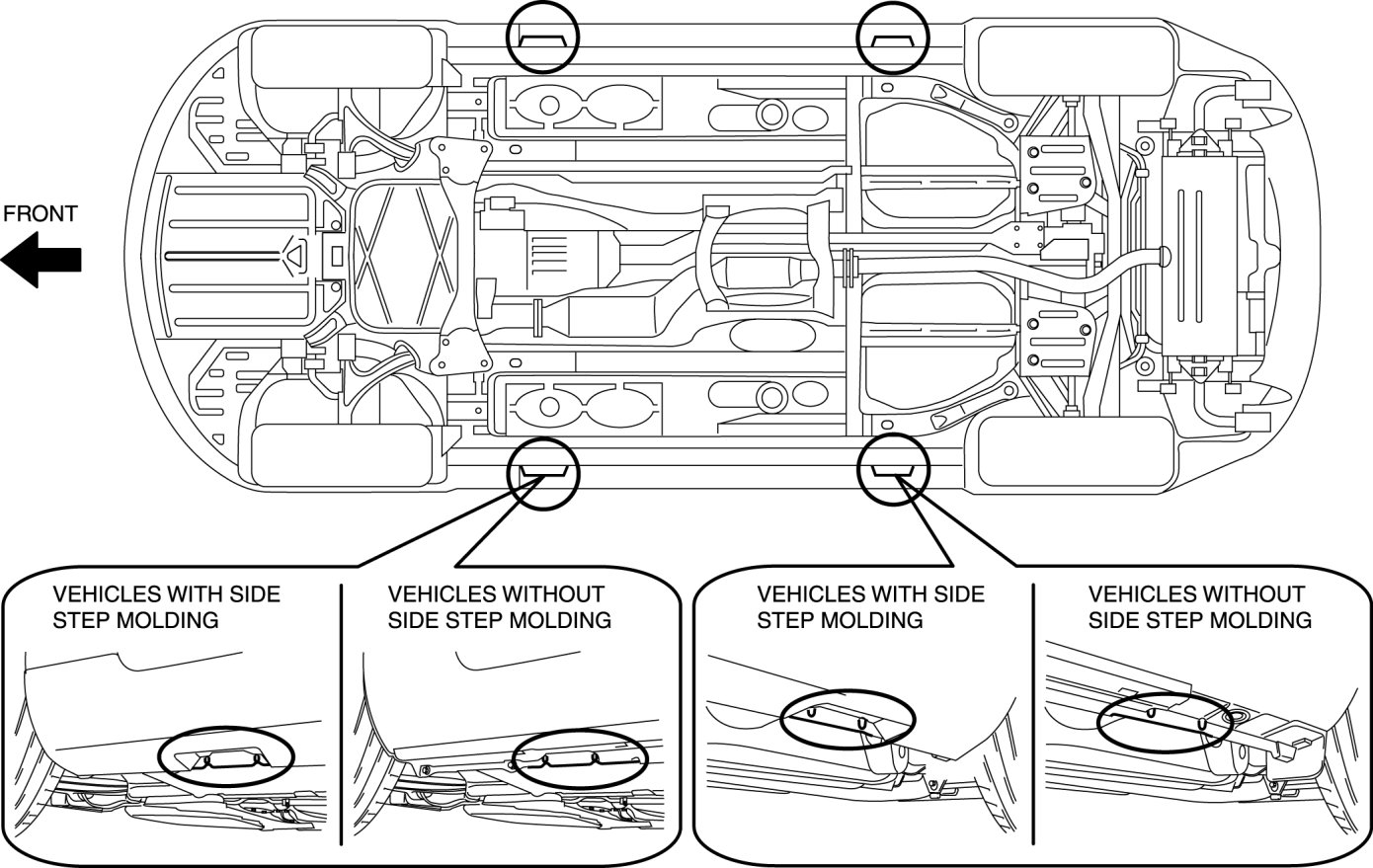

Vehicle Lift Positions

Front and rear

WARNING:
- Unstably lifting a vehicle is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of support at the end of the arm of the lift.

CAUTION:
- For vehicles with side step molding, be careful not to damage the side step molding by hitting it with auto-lift arms or a safety stand.

- Both sides of the vehicle, on side sills.
