Driver/Vehicle Information Display: Service and Repair

INFORMATION DISPLAY REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Front console Front Console Removal/Installation

c. Center panel module Center Panel Module Removal/Installation

d. Climate control unit (with car-navigation system) Climate Control Unit Removal/Installation - Full-Auto Air Conditioner

e. Car-navigation unit (with car-navigation system) Center Panel Module Removal/Installation

f. Dashboard center panel Dashboard Center Panel Removal/Installation

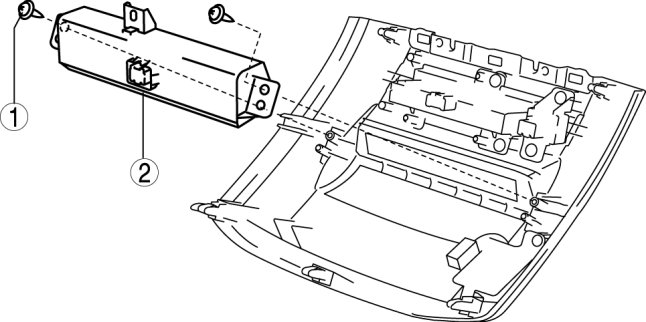

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
