Antilock Braking System

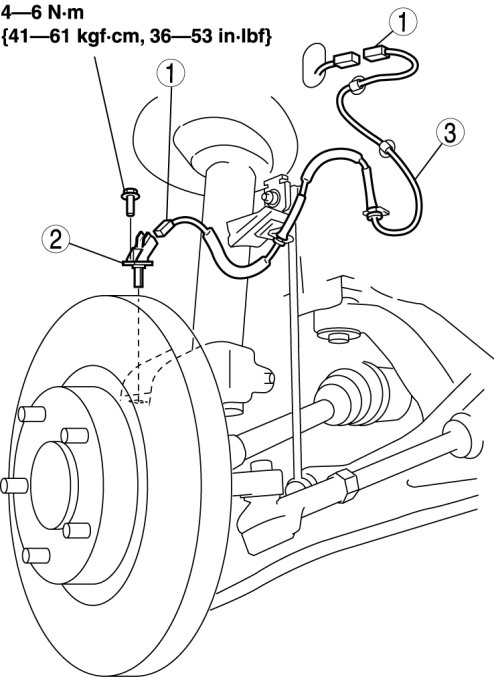

FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

1. Remove the mudguard.

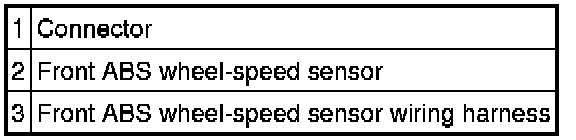

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
