Front Power Metal Oxide Semiconductor Field Effect Transistor (Power MOS FET) Removal/Installation - Full-Auto Air Conditioner

FRONT POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the side wall Side Wall Removal/Installation

4. Remove the under cover.

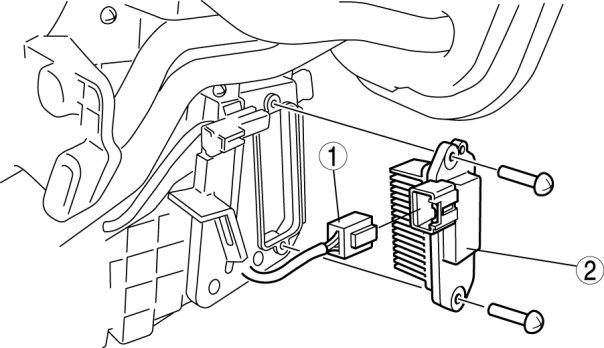

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.
