OIL COOLER REMOVAL/INSTALLATION [FS5A-EL]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the air cleaner component. Service and Repair

4. Remove the under cover.

5. Drain the engine coolant. Service and Repair

6. Drain the ATF into a container. Procedures

7. Disconnect the water hose. Service and Repair

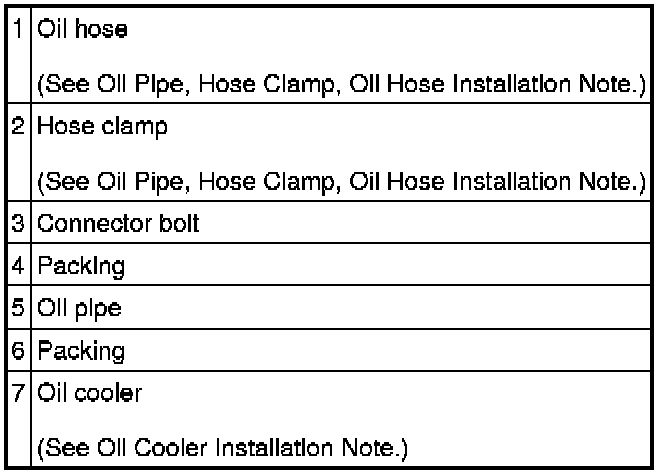

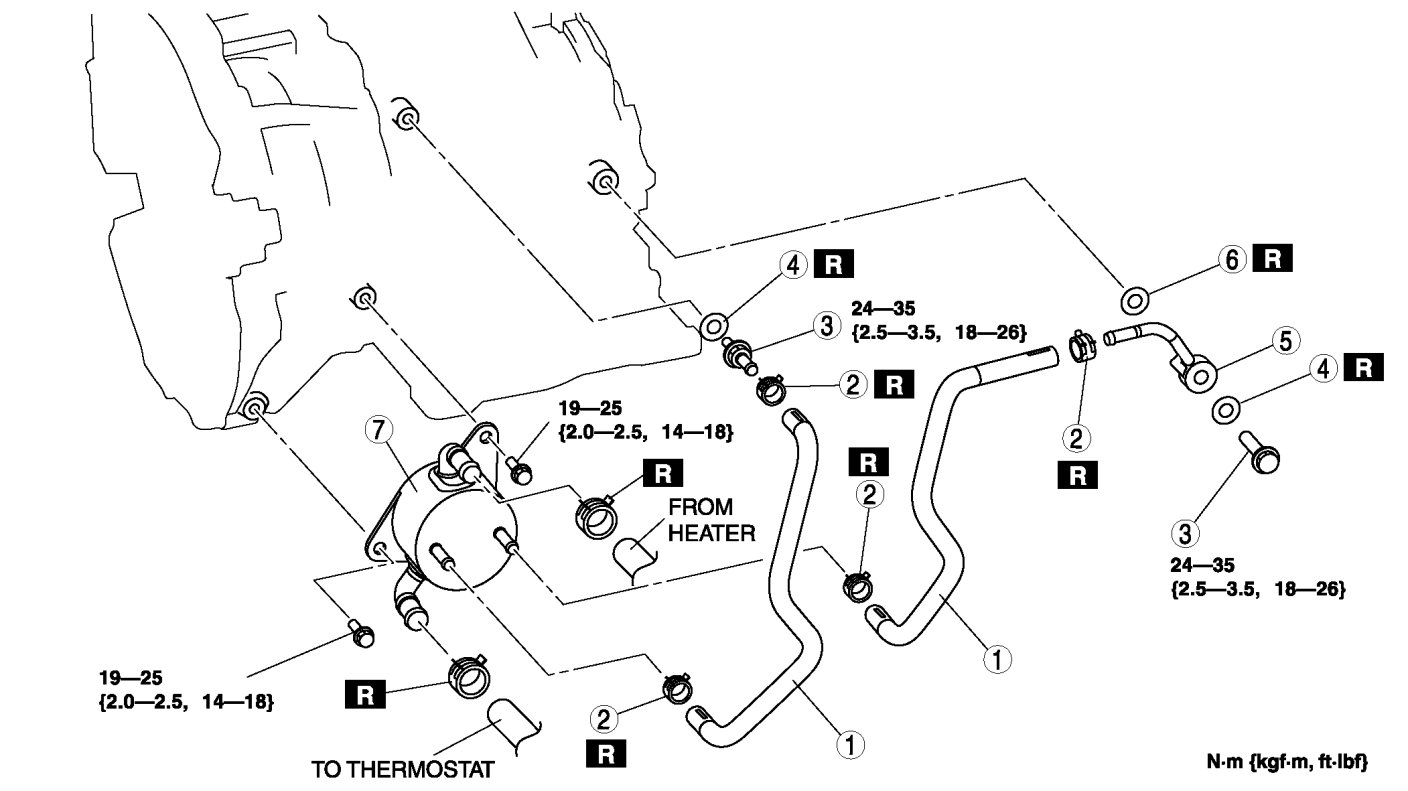

8. Remove in the order indicated in the table.

9. Install in the reverse order of removal.

10. Refill the engine coolant. Service and Repair

11. Inspect the engine coolant leakage. Engine Coolant Leakage Inspection

12. Add ATF to the specified level. Procedures

13. Inspect for oil leakage from the oil pipes and oil hoses.

14. Inspect for coolant from the hoses.

15. Inspect the ATF level and condition. Procedures

16. Perform the line pressure test. Mechanical System Test










Oil Cooler Installation Note

1. The automatic transaxle oil cooler flushing must be performed whenever a transaxle is removed for service because the existing fluid may be contaminated, and to prevent contamination of new fluid.
NOTE:
- Flushing must be performed after installation of the overhauled or replaced transaxle.

2. Follow the instructions in the manufacturer's publication for flushing operation.

Oil Pipe, Hose Clamp, Oil Hose Installation Note

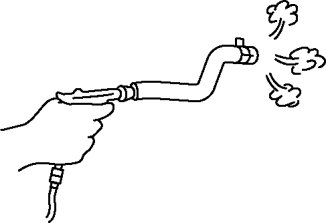

1. Apply compressed air to the cooler-side opening, and blow any remaining grime and foreign material from the cooler pipes. Compressed air should be applied for no less than 1 min.

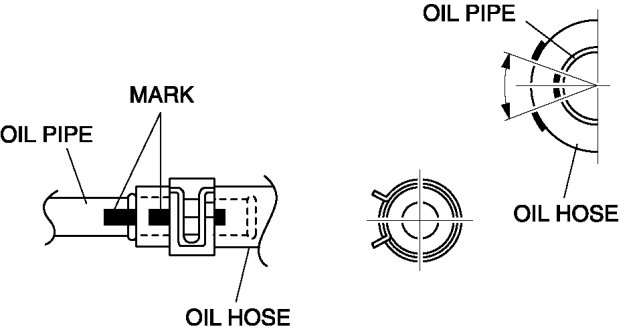

2. Align the marks, and slide the oil hose onto the oil pipe until it is fully seated as shown.






NOTE:
- If reusing the hose, install the new hose clamp exactly on the mark left by the previous hose clamp. Then apply force to the hose clamp in the direction of the arrow in order to fit the clamp in place.

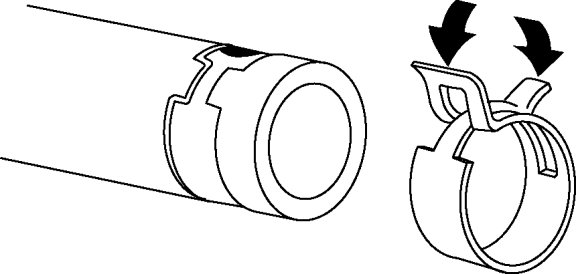

3. Install the new hose clamp onto the hose.






4. Verify that the hose clamp does not interfere with any other components.
