Auxiliary Input / Output Jack: Service and Repair

AUXILIARY JACK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the hole cover. Removal and Replacement

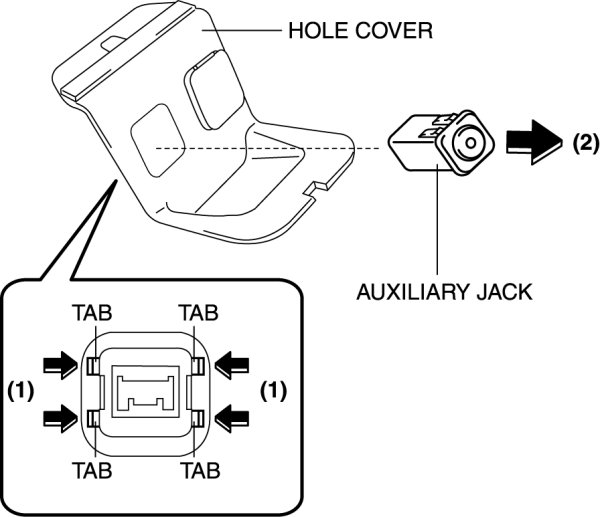

3. Remove the auxiliary jack in the direction of the arrow (2) shown in the figure while pressing the auxiliary jack tabs in the direction of the arrow (1).






4. Install in the reverse order of removal.
