Towing

TOWING

Towing

- Proper lifting and towing are necessary to prevent damage to the vehicle. Government and local laws must be followed.

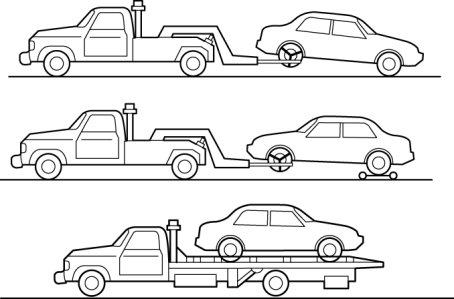

- A towed vehicle usually should have its drive wheels (rear wheels) off the ground. If excessive damage or other conditions prevent this, use wheel dollies.






CAUTION:

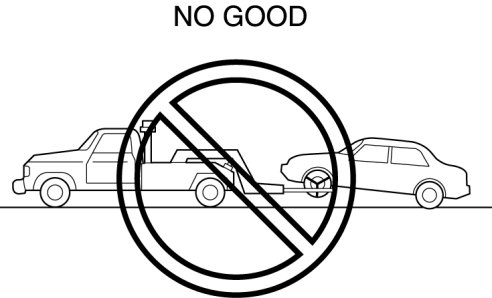

- Do not tow the vehicle pointed forward with driving wheels on the ground. This may cause internal damage to the transmission.






CAUTION:

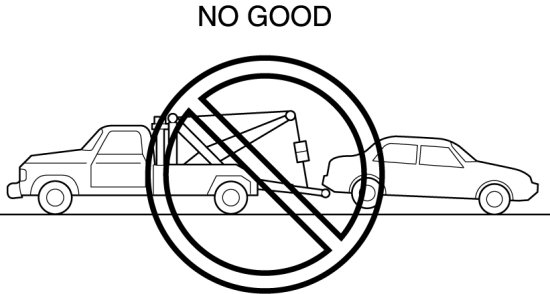

- Do not tow with sling-type equipment. This could damage your vehicle. Use wheel-lift or flatbed equipment.






Tiedown

CAUTION:
- Do not use the front and rear Tie-down eyelets for towing the vehicle. The have been designed only for securing the vehicle to a transport vessel during shipping. Using the eyelets for any other purpose could result in the vehicle being damaged.

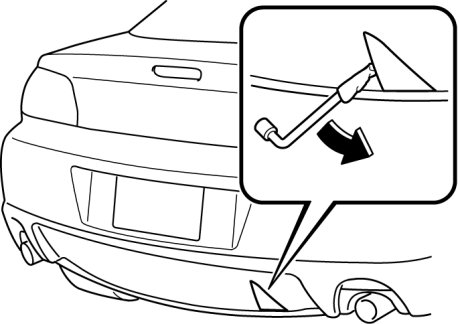

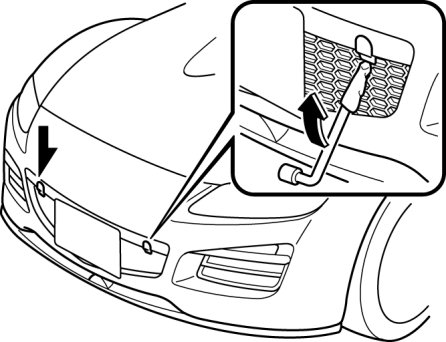

1. Wrap the wheel brace with a soft cloth to prevent damage to a painted bumper, and open the cap located on the front or rear bumper.
Front





Rear






CAUTION:
- The cap cannot be completely removed. Do not use excessive force as it may damage the cap or scratch the painted bumper surface.

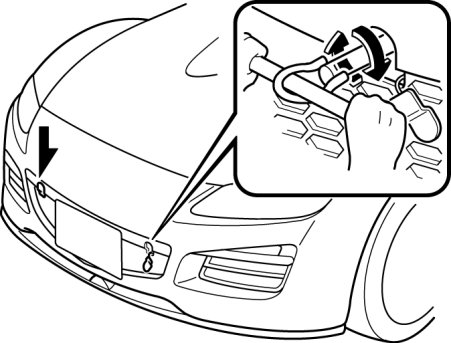

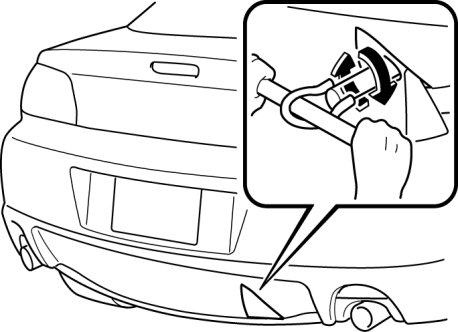

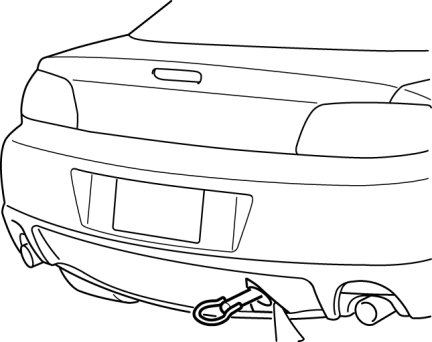

2. Securely install the Tie-down eyelet using the wheel brace.
Front





Rear

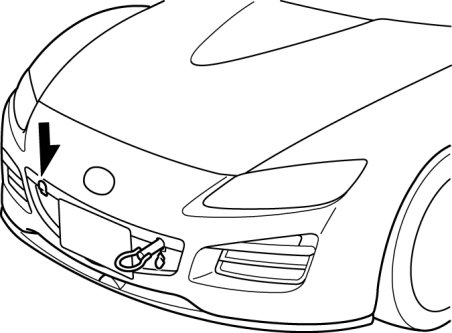

3. Hook the tying rope to the Tie-down eyelet.
Front





Rear






CAUTION:
- If the Tie-down eyelet is not securely tightened, it may loosen or disengage from the bumper when tying down the vehicle. Make sure that the Tie-down eyelet is securely tightened to the bumper.
