Front Bumper Bracket: Service and Repair

FRONT BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]

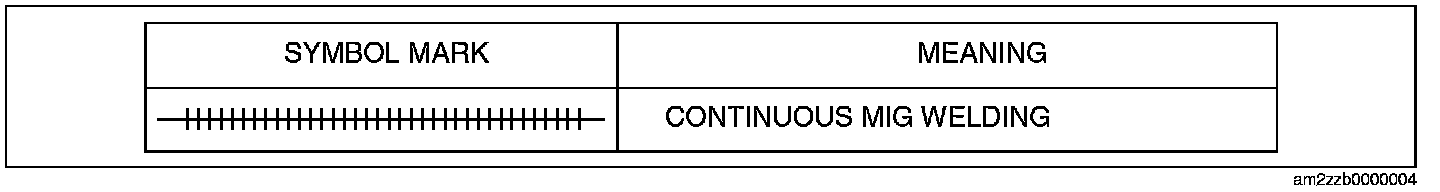

Symbol Mark







Removal Procedure

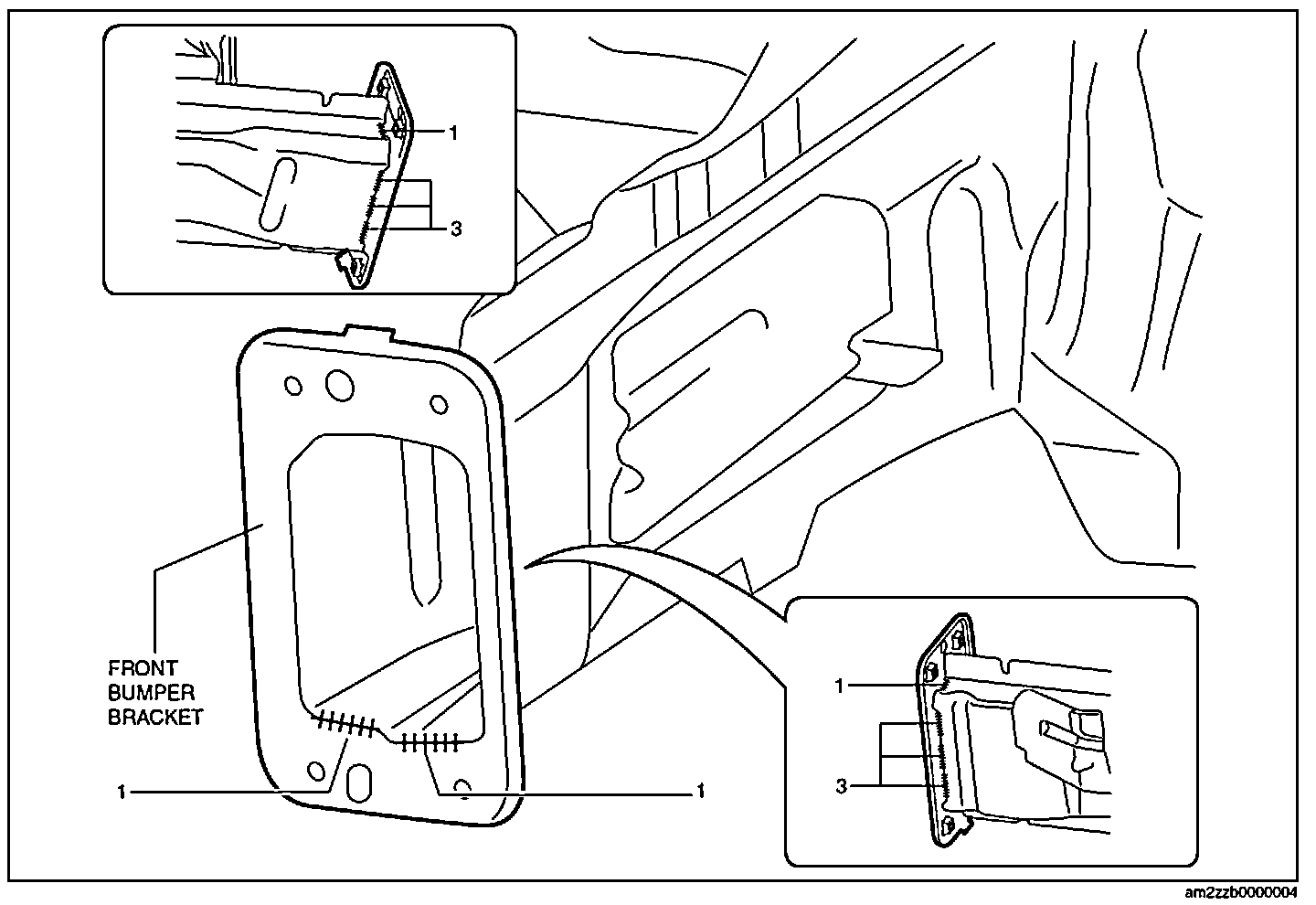

1. Remove the front bumper bracket.







FRONT BUMPER BRACKET INSTALLATION [PANEL REPLACEMENT]

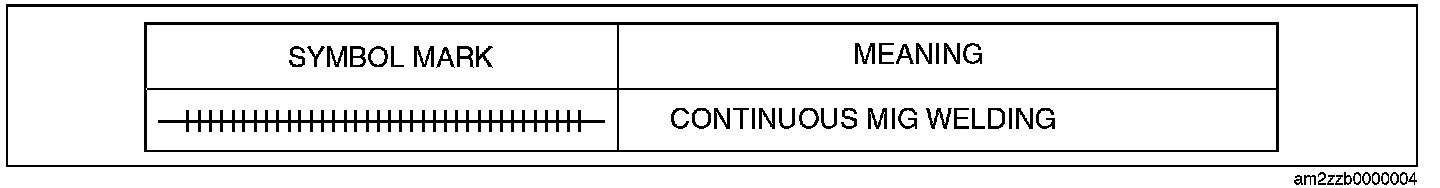

Symbol Mark







Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. After temporarily installing new parts, make sure the related parts fit properly.

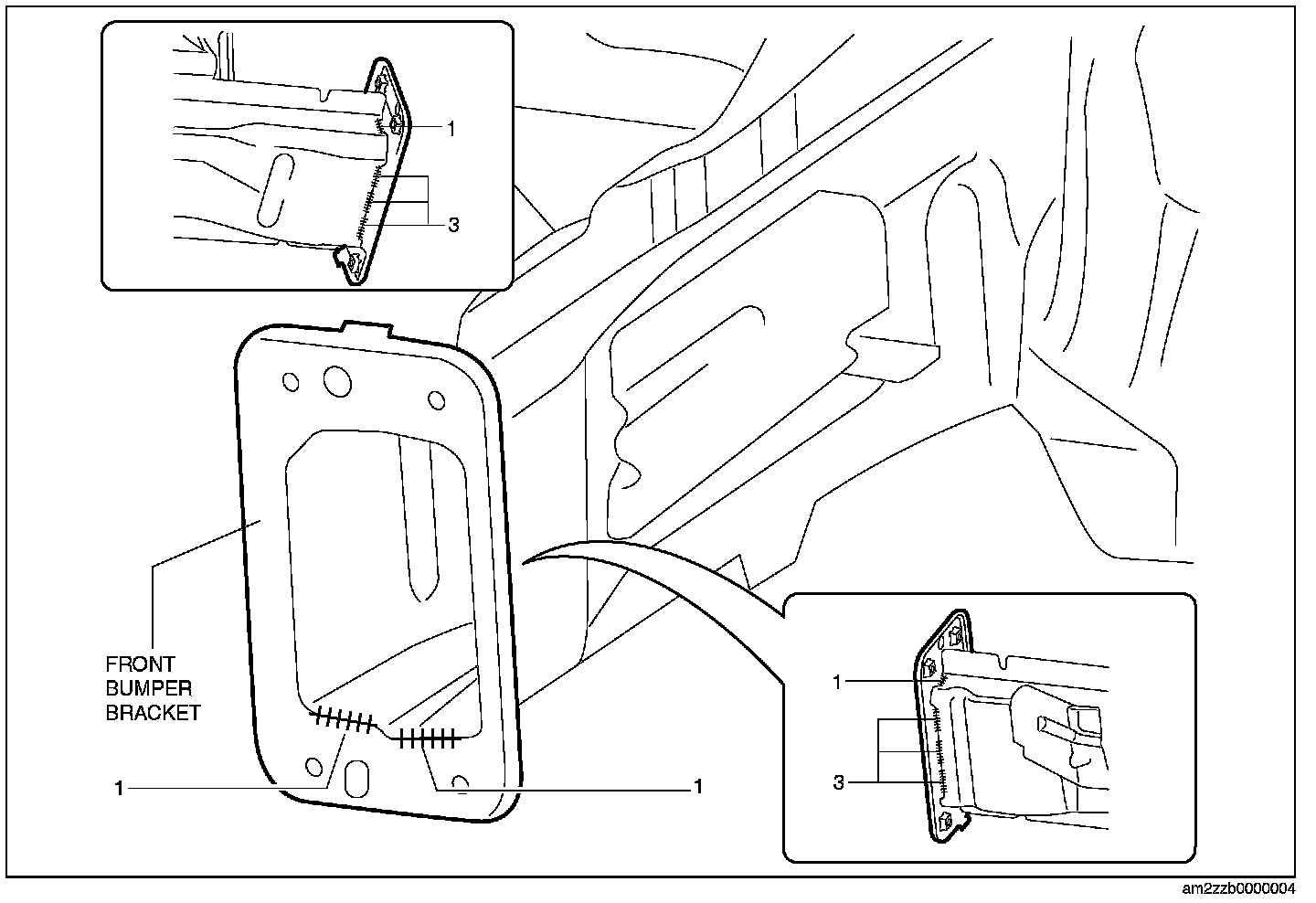

3. Continuous MIG weld the 10 locations indicated shown in the figure.
