Brake Master Cylinder: Service and Repair

MASTER CYLINDER REMOVAL/INSTALLATION

CAUTION:
- When removing/installing the master cylinder, avoid touching the primary piston with your hand when not necessary. Otherwise, it could damage the master cylinder.

1. Remove the battery. Removal and Replacement

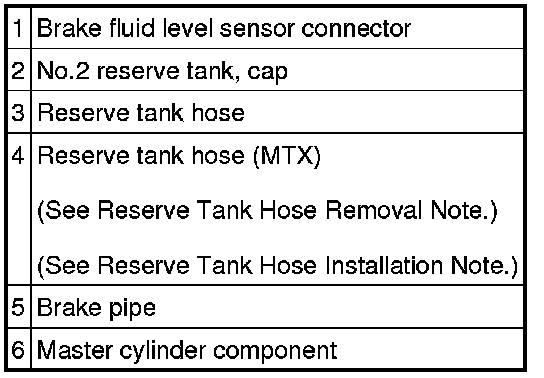

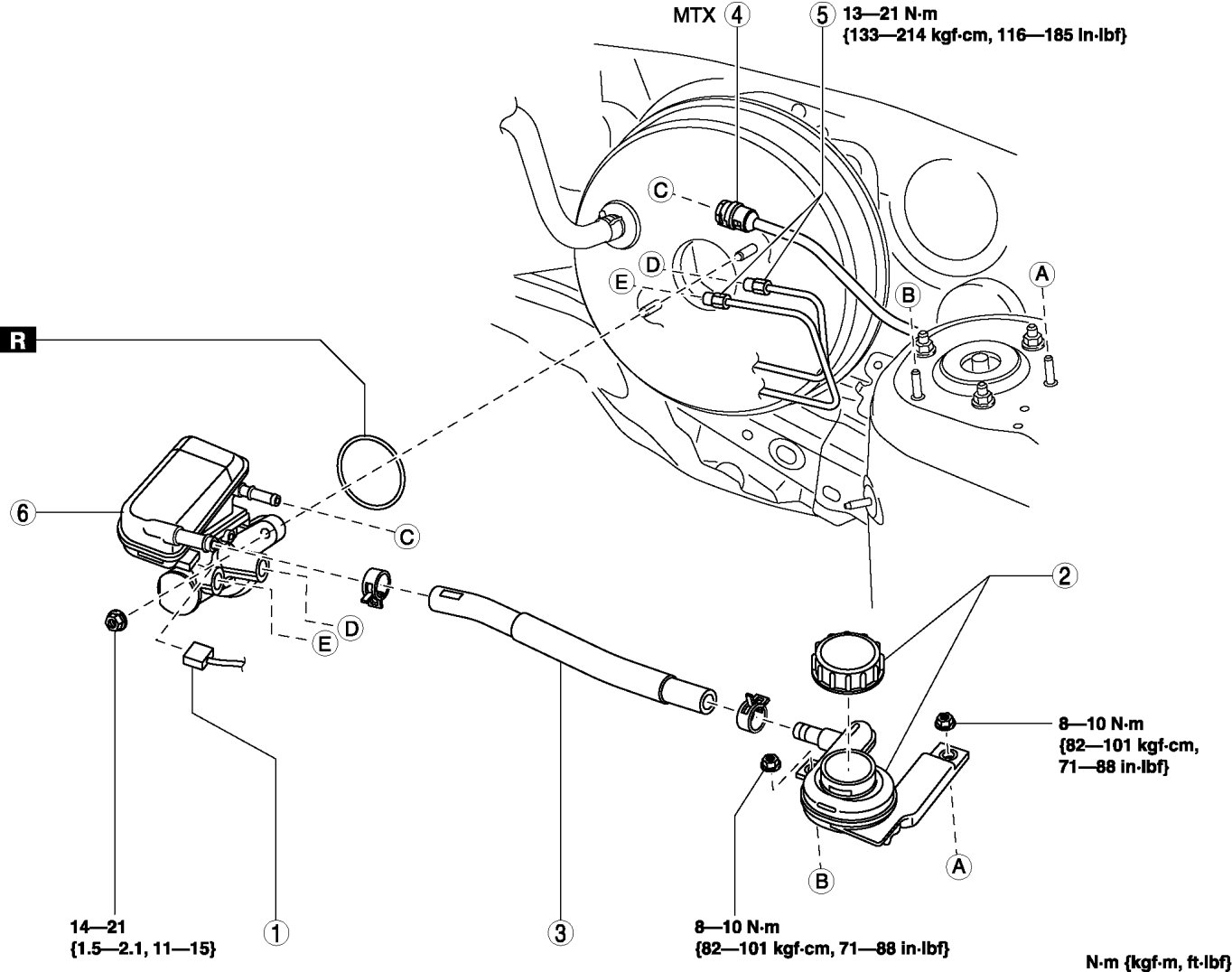

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. Service and Repair









Reserve Tank Hose Removal Note

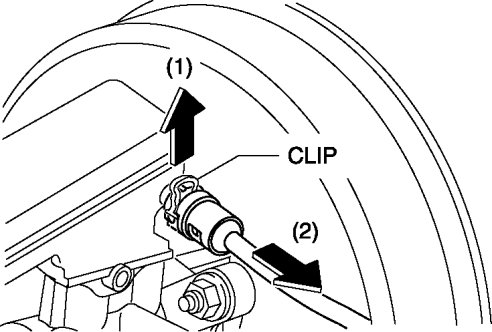

1. Move the clip upward.






2. Disconnect the reserve tank hose.

Reserve Tank Hose Installation Note

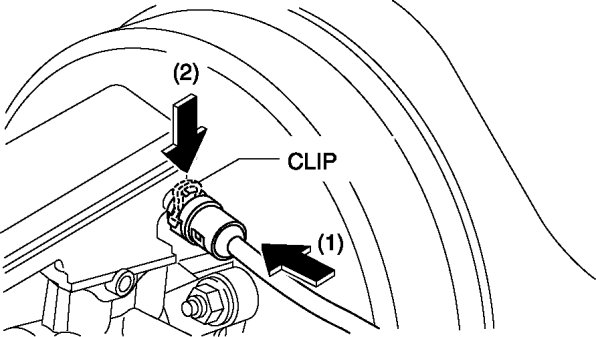

1. Press the clip in after the reserve hose is inserted completely.






2. Verify that the reserve tank hose is securely installed by pulling it, and reinsert into the reserve tank.
