Vacuum Brake Booster Check Valve: Service and Repair

VACUUM HOSE REMOVAL/INSTALLATION

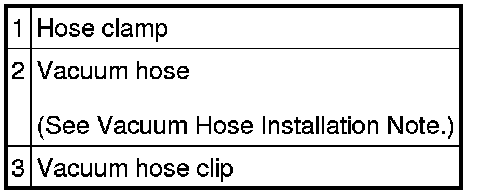

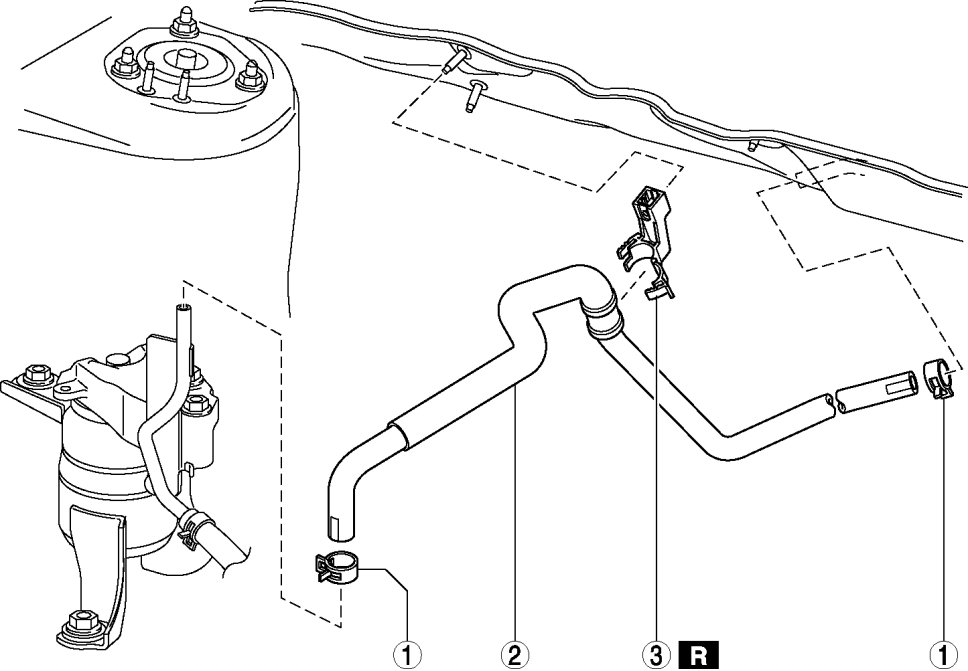

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.









Vacuum Hose Installation Note

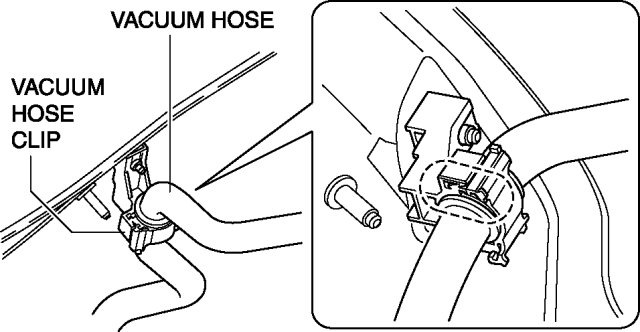

1. Install the vacuum hose to the vacuum hose clip as shown in the figure.
