Wheel And Tire Specification





WHEEL AND TIRE SPECIFICATION

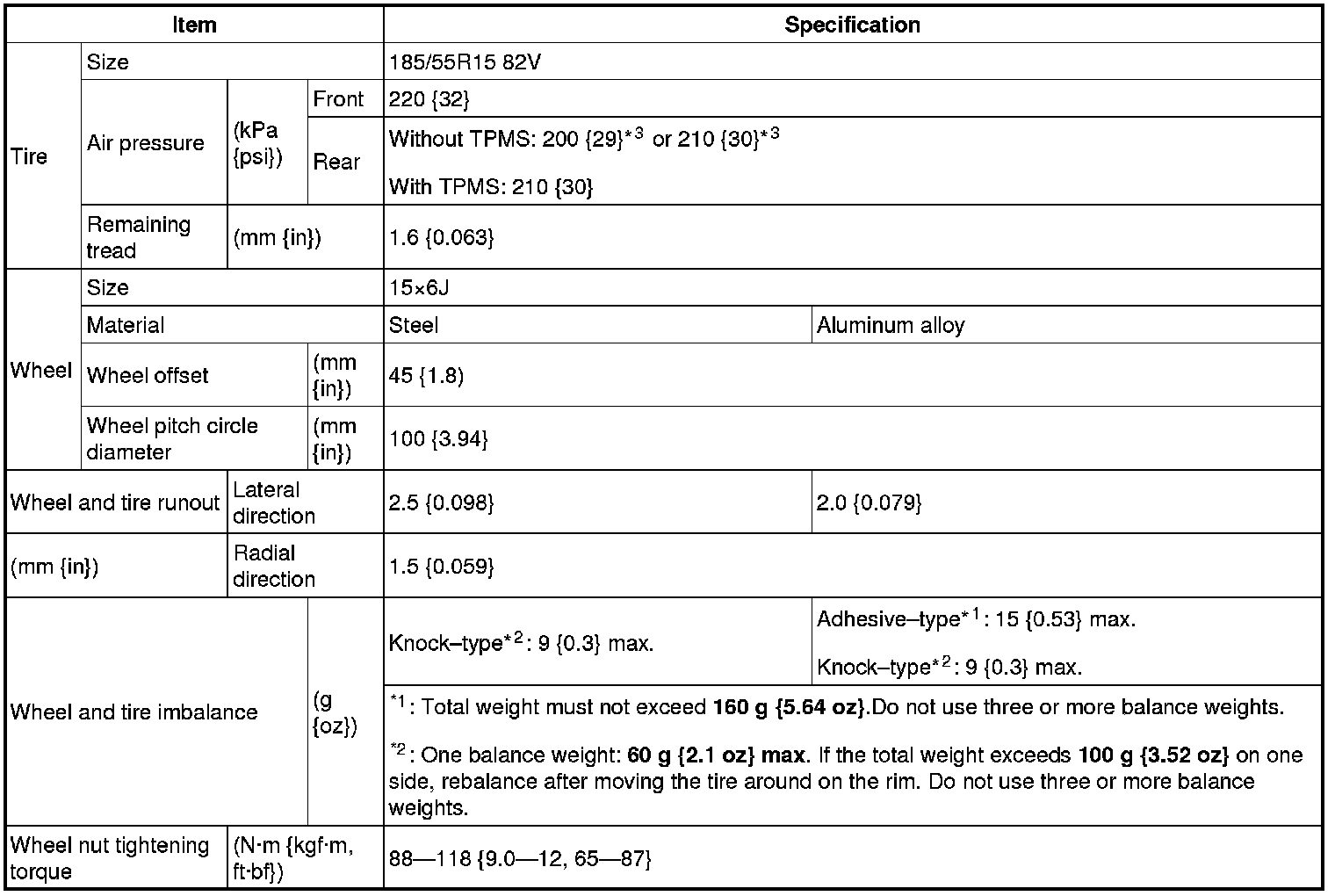

Standard tire





*3
Verify the tire label attached to the actual vehicle on vehicles without TPMS.

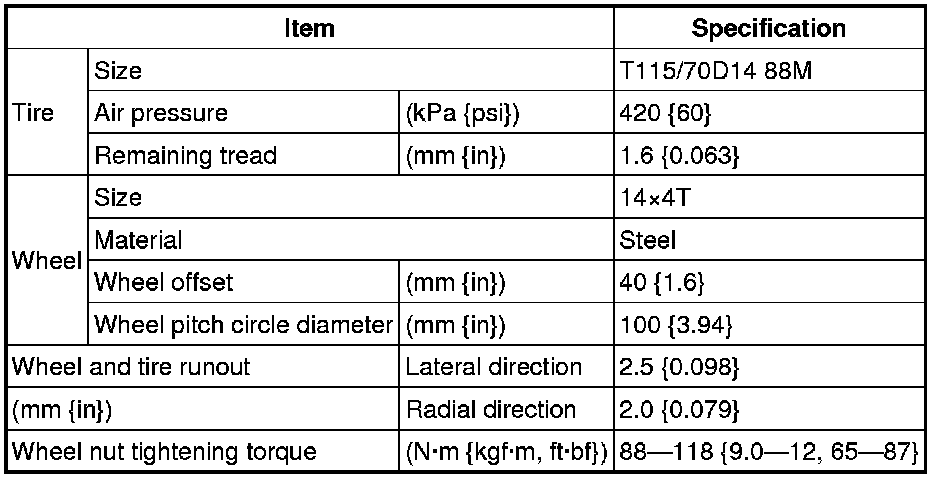

Spare tire
