Child Seat Tether Attachment: Service and Repair

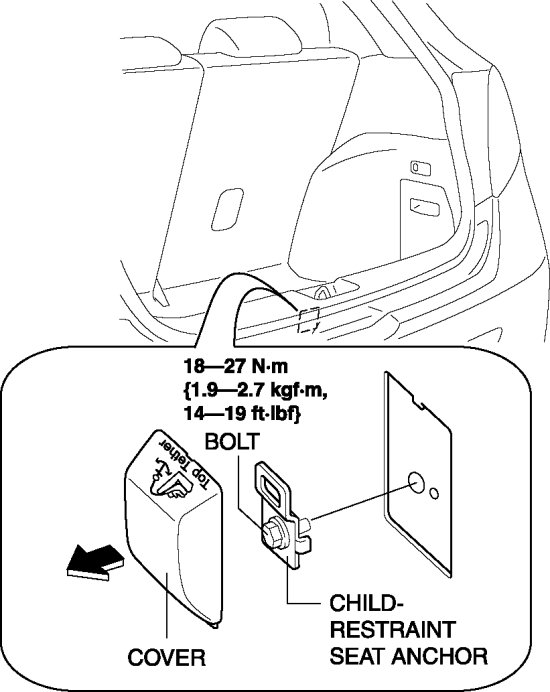

CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

1. Remove the cover.






2. Remove the bolt.

3. Remove the child-restraint seat anchor.

4. Install in the reverse order of removal.
