Windshield Washer Hose Removal/Installation

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Windshield wiper arm and blade Windshield Wiper Arm And Blade Removal/Installation

b. Cowl grille Cowl Grille Removal/Installation

c. Mudguard on the left side Service and Repair

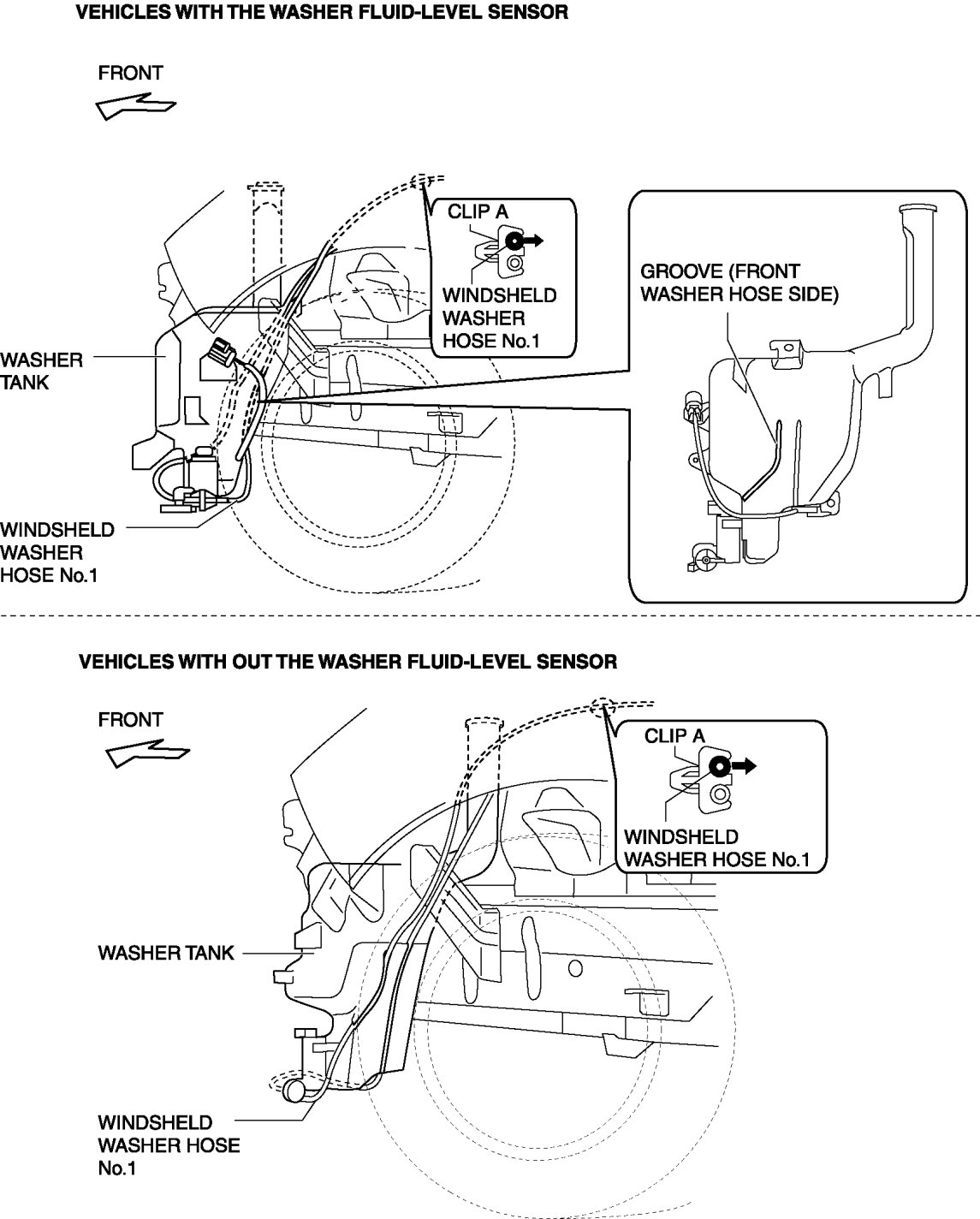

3. Remove windshield washer hose No.1 from the washer tank.






4. Detach clip A.

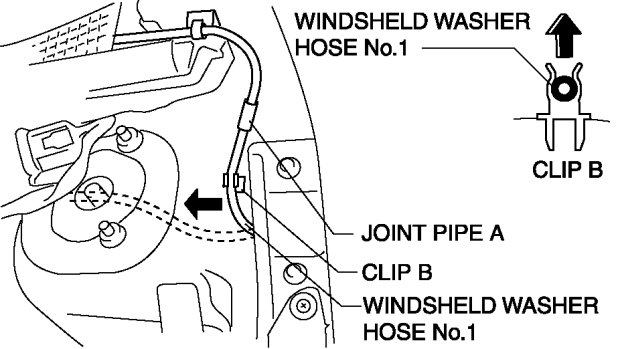

5. Remove windshield washer hose No.1 from clip B and joint pipe A in the direction of the arrow shown in the figure.






6. Remove the windshield washer base No.1 from joint pipe A.

7. Remove windshield washer hose No.1 from joint pipe A.

8. Remove the windshield washer nozzle. Windshield Washer Nozzle Removal/Installation

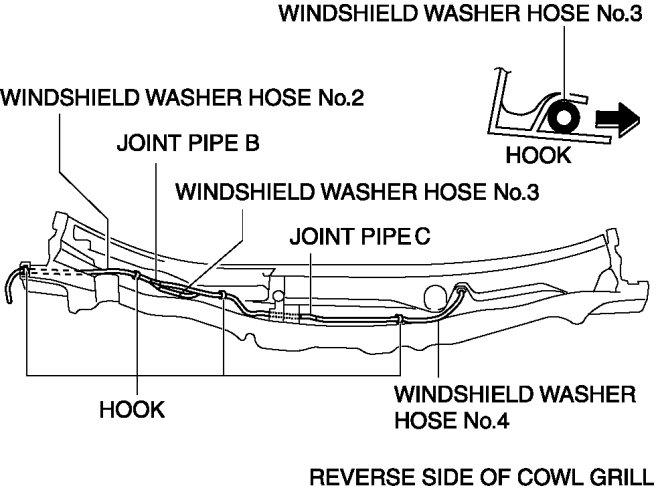

9. Remove the windshield washer hose from the hook.






10. Remove windshield washer hoses No.2, No.3 and No.4 from joint pipes B and C.

11. Install in the reverse order of removal.
