Rear Wiper Motor Removal/Installation

REAR WIPER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the liftgate lower trim.

3. Remove the rear wiper arm and blade. Rear Wiper Arm And Blade Removal/Installation

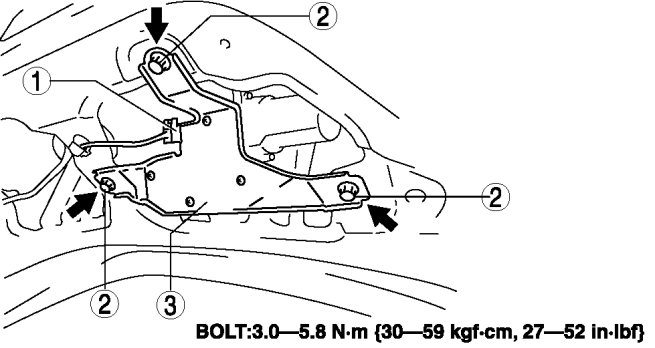

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

6. Adjust the rear wiper arm and blade. Rear Wiper Arm And Blade Adjustment
